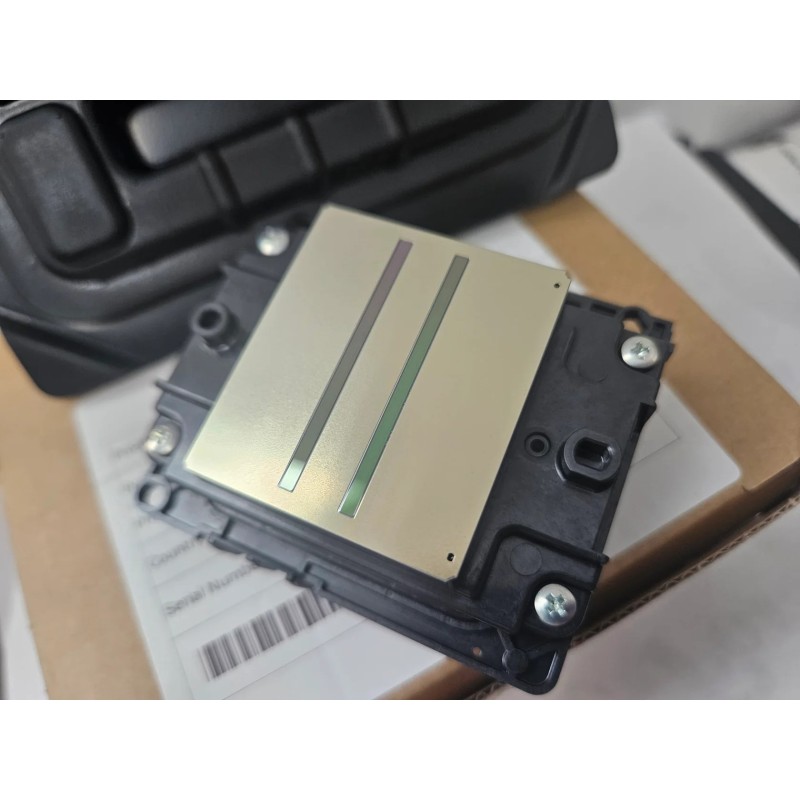

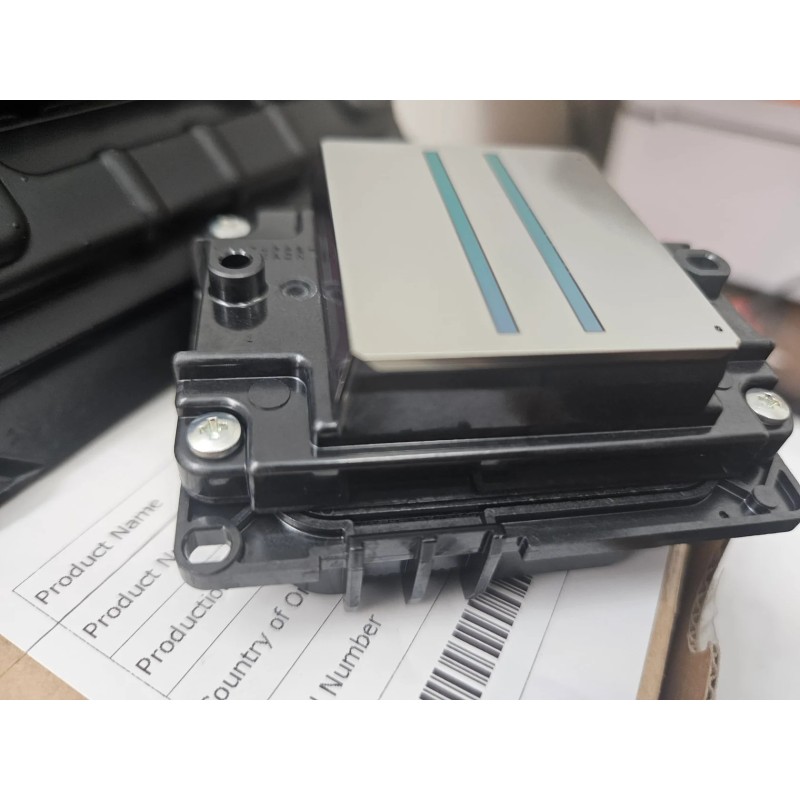

Epson i1600 Printhead PrecisionCore Industrial Replacement Head

Product Overview

The Epson i1600 Printhead is a compact, high-density PrecisionCore MicroTFP industrial printhead developed by Epson to deliver wide-format production speeds, high durability, and sharp image detail. Featuring 4 distinct ink channels with 400 nozzles per channel (1,600 active nozzles total), the i1600 delivers native 600 dpi resolution per pass with multi-drop variable size capability.

Designed as an unlocked replacement component, the i1600 series is available in tailored fluid configurations to support water-based pigment/dye/DTF inks (i1600-A1), eco-solvent inks (i1600-E1), and UV-curable chemistries (i1600-U1). It provides high-frequency jetting for commercial sign, textile, and industrial labeling equipment.

Part Information

• Brand: Epson

• Product Series: PrecisionCore i1600 Series

• Product Type: Industrial Inkjet Printhead

• Variant Options:

• i1600-A1: Water-Based / Aqueous / DTF / Sublimation

• i1600-E1: Eco-Solvent / Solvent Inks

• i1600-U1: UV-Curable Inks

• Technology: PrecisionCore MEMS MicroTFP

• Nozzle Configuration: 4 Channels x 400 Nozzles (1,600 Active Nozzles Total)

• Native Nozzle Resolution: 300 npi per row (2 rows per channel = 600 npi)

• Lock Status: Unlocked (Compatible with standard third-party driver boards)

• Condition: 100% Genuine Original, Brand New

Technical Specifications

Technical Precision & Operational Advisory

• Verify Ink Chemistries: Ensure you match the correct printhead variant to your ink formulation. Running eco-solvent or UV inks through an i1600-A1 (water-based) head can destroy internal manifold seals and cause immediate internal short-circuits.

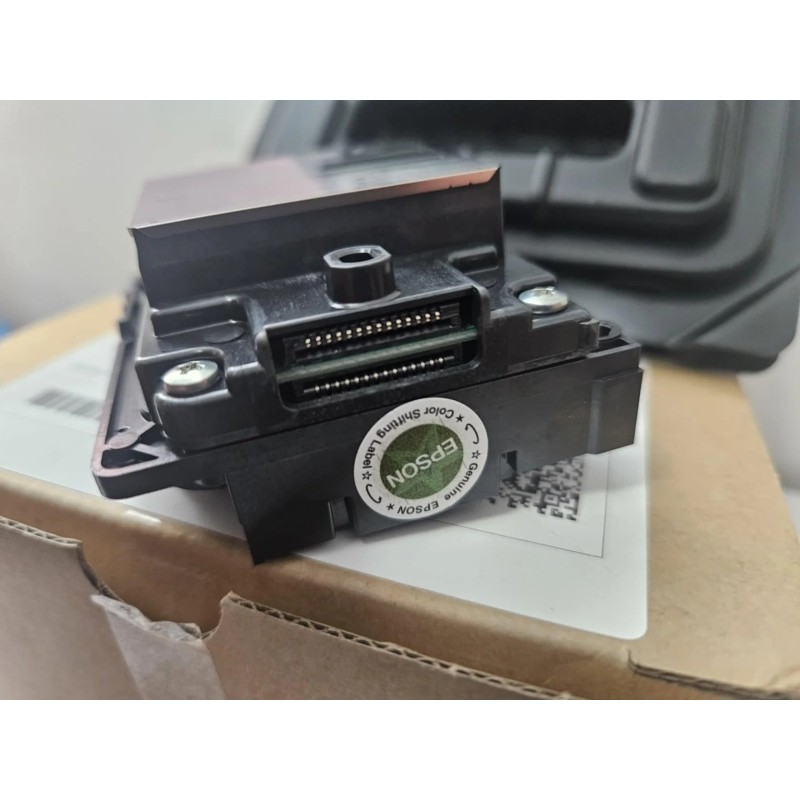

• Inspect Head Flat Flexible Cables (FFC): Always examine flat ribbon cable contacts before plugging them in. Bent, misaligned pins or ink contamination on the ribbon contacts will short-circuit both the printhead motherboard ICs and the piezo drivers upon powering on.

• Electrostatic Discharge (ESD) Safety: PrecisionCore MEMS actuators are sensitive to static electricity. Technicians must wear anti-static grounding straps during installation and verify the printer is completely powered down before connecting cables.

• Damper & Capping Maintenance: When installing a new printhead, inspect and replace dampers, wipers, and the capping top assembly to ensure proper vacuum seal, preventing nozzle drying and starvation.

Compatible Printers or Equipment

Important Compatibility Notice

Please verify your motherboard configuration, driver board version, and specific ink type requirement (Water-Based, Eco-Solvent, or UV) prior to purchase. If you are unsure about board system compatibility, please contact us with your machine model and motherboard specs.

Packaging and Shipping

The product will be securely packaged in anti-static protective packaging to ensure safety during international shipping.

Genuine Product Notice

This product is supplied as a 100% genuine original, brand-new replacement part.

Terms & Warranty Advisory

• Pre-Installation Guarantee: We guarantee that the item received is 100% genuine, brand-new, and authentic in original factory condition.

• Chemical Ink Disclaimer: Due to the chemical nature of industrial inks (UV, Eco-Solvent, and DTF Pigment), once the printhead has been installed on the printer or exposed to ink, it cannot be returned, exchanged, or refunded. All sales become final upon installation.

• Return Policy Before Use: Unused and uninstalled items in original packaging may be returned or exchanged under our store policy prior to installation. Please contact us before returning any item.
