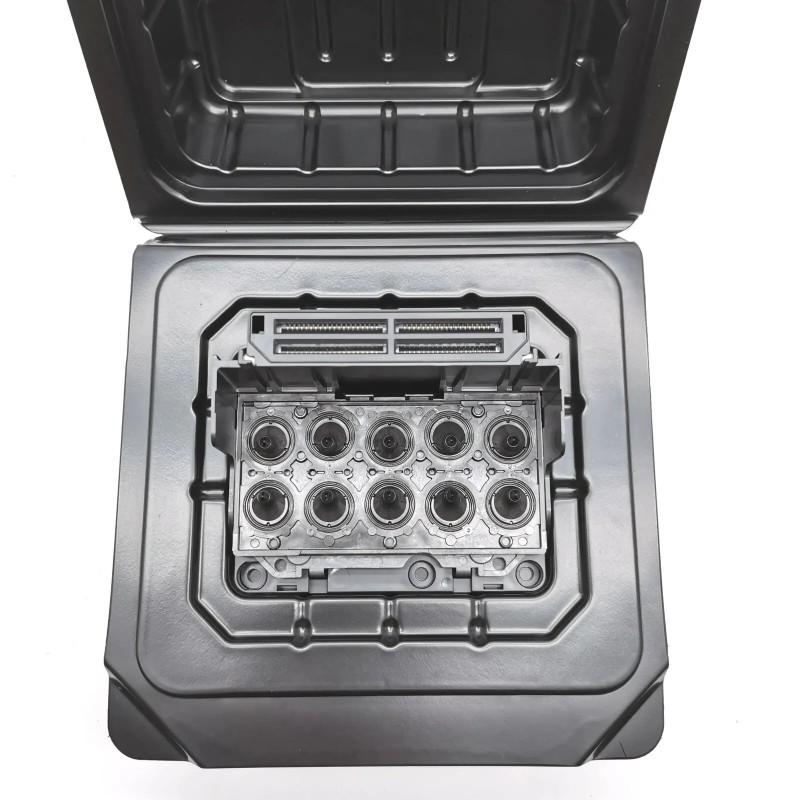

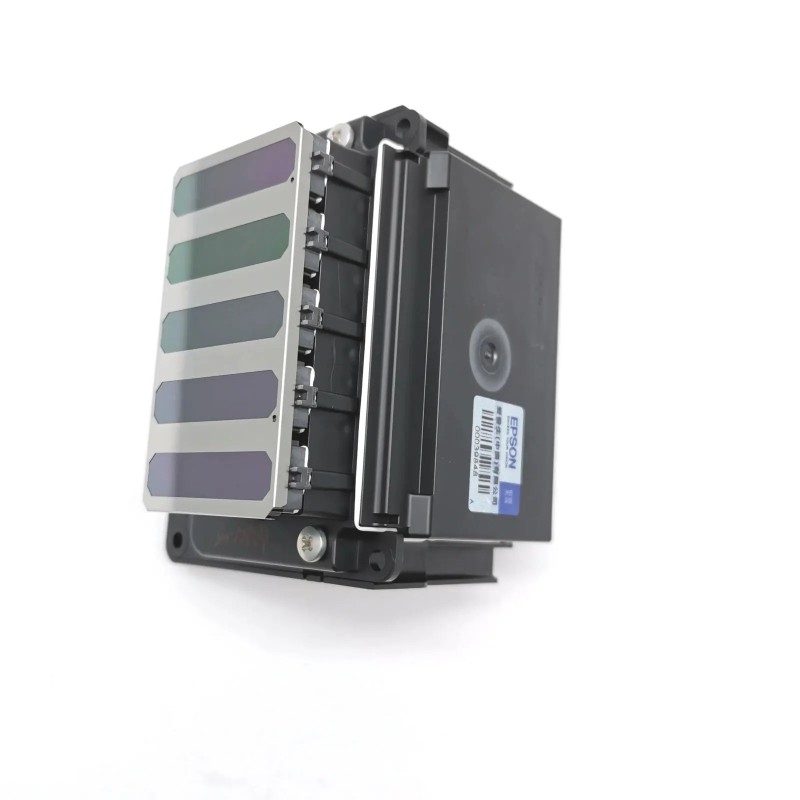

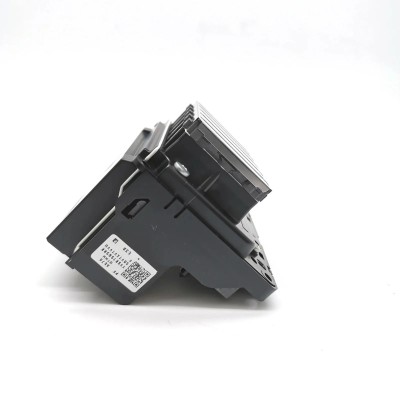

Epson FA10030 FA10010 DX6 Printhead for SureColor T3000 T5000 T7000 T3270 T5270 T7270

Product Overview

The Epson FA10030 DX6 Printhead is an original, Japanese-manufactured replacement component built specifically for the Epson SureColor T-Series wide-format printing platform—the industry-standard for CAD, GIS, architectural, engineering, and construction (AEC) output. Engineered with Epson’s DX6 MicroPiezo technology, this 8-channel, 5,760-nozzle printhead delivers 3.5 pl precision drop control at up to 50 kHz with a maximum resolution of 2880 × 1440 dpi. It supports both single-roll and dual-roll printer configurations across the full SureColor T3000, T5000, and T7000 series.

Part Information

• Brand: Epson

• Product Type: Inkjet Printhead

• Model: DX6 MicroPiezo

• Part Number: FA10030

• Alternative Part Numbers: FA10010, FA10000, FA10020

• Ink Compatibility: Epson UltraChrome T3 Aqueous Pigment Inks Only

• Nozzle Configuration: 8 Channels x 720 Nozzles (5,760 Nozzles Total)

• Minimum Drop Size: 3.5 pl

• Maximum Resolution: 2880 × 1440 dpi

• Operating Frequency: Up to 50 kHz

• Country of Origin: Japan

• Condition: Genuine Original

Technical Specifications

Part Number Supersession Information

FA10030 is the current active Epson part number, superseding original part numbers FA10010, FA10000, and FA10020. If your service documentation, maintenance records, or prior part catalog lists FA10010, the FA10030 is the direct replacement. No hardware or configuration changes are required upon installation; all variants use the exact same DX6 MicroPiezo assembly.

Technical Precision & Media Compatibility

• Aqueous Pigment Ink System: The FA10030 is engineered specifically for Epson UltraChrome T3 aqueous pigment ink systems. It is not compatible with dye-based, eco-solvent, UV, or latex inks. Using non-genuine or third-party ink formulations can permanently damage the microscopic nozzle channels.

• Single-Roll vs. Dual-Roll System: The SureColor T5200D and T7200D dual-roll models utilize the exact same printhead assembly as single-roll models. The "D" suffix indicates media-handling architecture and does not alter printhead compatibility.

Installation Advisory & Maintenance Considerations

• Data Cable Replacement: It is strongly recommended to replace the flat flexible printhead data cables when installing a new FA10030 printhead. Worn or ink-exposed cables from a previous installation are a leading cause of nozzle communication errors and electrical shorts.

• Damper Maintenance: Ink dampers can accumulate pigment sediment over extended operational periods. Replacing ink dampers during head installation ensures unobstructed ink flow and preserves long-term printhead performance.

Applications

• CAD & Technical Output: Architectural blueprints, GIS mapping, and engineering drawings at high line accuracy.

• Posters & Display Graphics: Indoor and light outdoor display graphics utilizing durable pigment inks.

• Fine Art & Photography: Gallery-quality prints up to 2880 × 1440 dpi resolution on matte, glossy, and fine art media.

Compatible Printers or Equipment

Important Compatibility Notice

Please verify your existing part number and equipment model before placing an order. If you are unsure about compatibility, please contact us with your printer or machine model and the part number of your existing component.

Packaging and Shipping

The product will be carefully packed to help ensure safe international shipping.

Genuine Product Notice

This product is supplied as a genuine original replacement part.

Warranty and Customer Protection

This product is covered by a 1-year warranty against manufacturing defects, subject to the applicable warranty terms and conditions.

We also provide a 30-day store guarantee for customer protection. If your item arrives damaged, defective, or does not function properly upon receipt, please contact us within 30 days of delivery.

Depending on the situation, we will provide a replacement or a 100% refund of the product payment.

Please contact us before returning any item so we can assist you with the return process.

This warranty and return protection applies in accordance with our applicable warranty and return terms.
