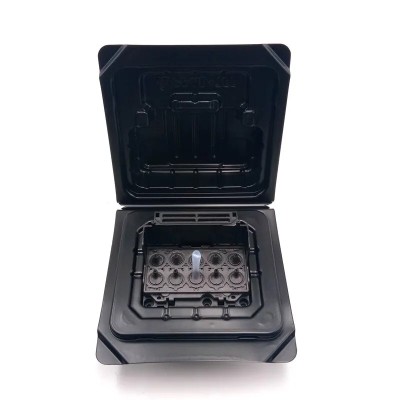

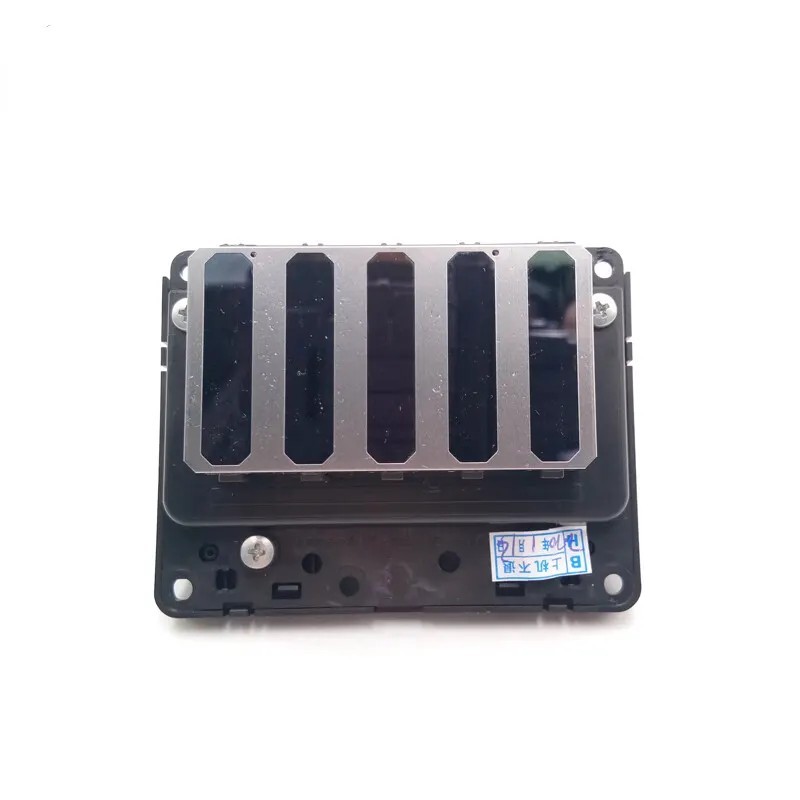

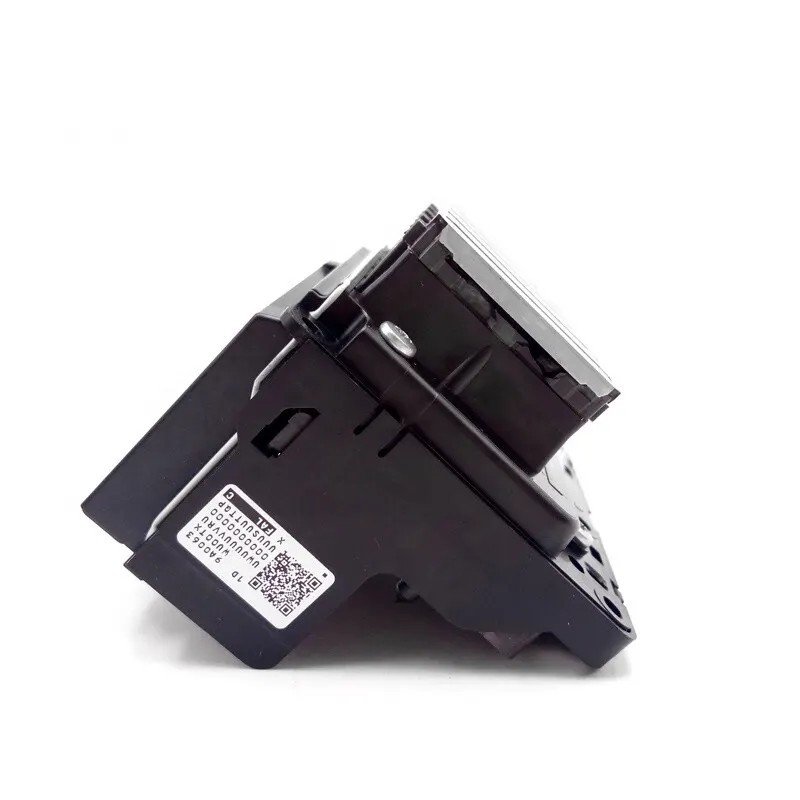

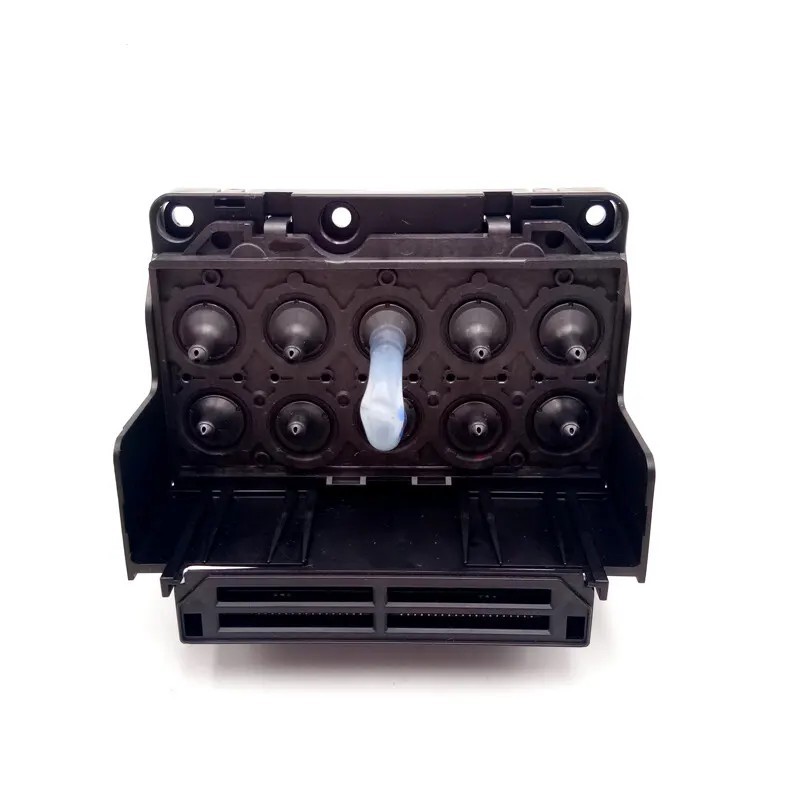

Epson Stylus Pro 4900 R4900 R4910 SPE4910 Printhead F198000 F198060 TFP MicroPiezo

Product Overview

The Epson Stylus Pro 4900 Printhead (Part Numbers F198000 / F198060) is an original, brand-new factory replacement component built on Epson's Advanced MicroPiezo TFP (Thin Film Piezo) technology. Designed specifically for high-precision desktop wide-format proofing and photographic printers, this 10-channel printhead features 360 nozzles per channel (3,600 active nozzles total). Featuring an ink-repelling surface coating and Variable-Sized Droplet Technology (droplets down to 3.5 picoliters), it produces exceptionally detailed prints, smooth color gradations, and sharp text for professional fine art and commercial printing applications.

Part Information

• Brand: Epson

• Product Type: Inkjet Printhead

• Model: Advanced MicroPiezo TFP

• Epson Part Number: F198000

• Interchangeable / Superseded Part Numbers: F198060, PRH-EPS-011

• Technology: MicroPiezo TFP Drop-on-Demand Piezoelectric

• Nozzle Configuration: 10 Channels x 360 Nozzles (3,600 Active Nozzles Total)

• Minimum Drop Volume: 3.5 pl (Variable Droplet Technology)

• Ink Compatibility: Aqueous Pigment Inks (Epson UltraChrome HDR)

• Condition: Genuine Original

Technical Specifications

Part Number Supersession Information

Part numbers F198000 and F198060 represent direct factory revisions of the same Epson MicroPiezo TFP printhead. They share identical physical dimensions, channel configurations, and electrical specifications, serving as drop-in replacements for all listed printer models.

Technical Precision & Operational Advisory

• Aqueous Pigment System Only: Engineered exclusively for Epson UltraChrome HDR aqueous pigment inks. Never use solvent, eco-solvent, UV-curable, or aggressive chemical cleaning fluids, as unapproved chemistries will dissolve manifold seals and permanently damage internal piezoelectric actuators.

• Professional Installation Recommended: Installing a TFP printhead requires careful handling, mechanical calibration, and software/head-rank ID entry. Installation by a qualified service technician is strongly advised.

• Data Cable Replacement: It is highly recommended to replace flat flexible printhead data cables (FFC) when installing a new printhead. Aged, bent, or ink-contaminated data cables are a primary cause of short circuits that can destroy both the printhead and the printer driver board.

Compatible Printers or Equipment

Important Compatibility Notice

Please verify your existing part number and equipment model before placing an order. If you are unsure about compatibility, please contact us with your printer or machine model and the part number of your existing component.

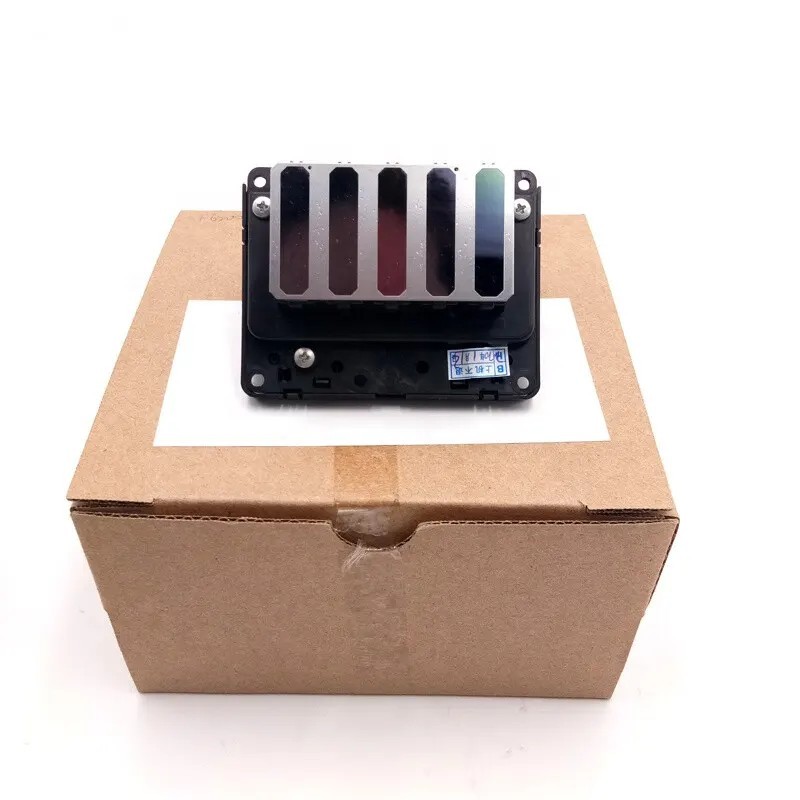

Packaging and Shipping

The product will be carefully packed to help ensure safe international shipping.

Genuine Product Notice

This product is supplied as a genuine original replacement part.

Warranty and Customer Protection

This product is covered by a 1-year warranty against manufacturing defects, subject to the applicable warranty terms and conditions.

We also provide a 30-day store guarantee for customer protection. If your item arrives damaged, defective, or does not function properly upon receipt, please contact us within 30 days of delivery.

Depending on the situation, we will provide a replacement or a 100% refund of the product payment.

Please contact us before returning any item so we can assist you with the return process.

This warranty and return protection applies in accordance with our applicable warranty and return terms.
