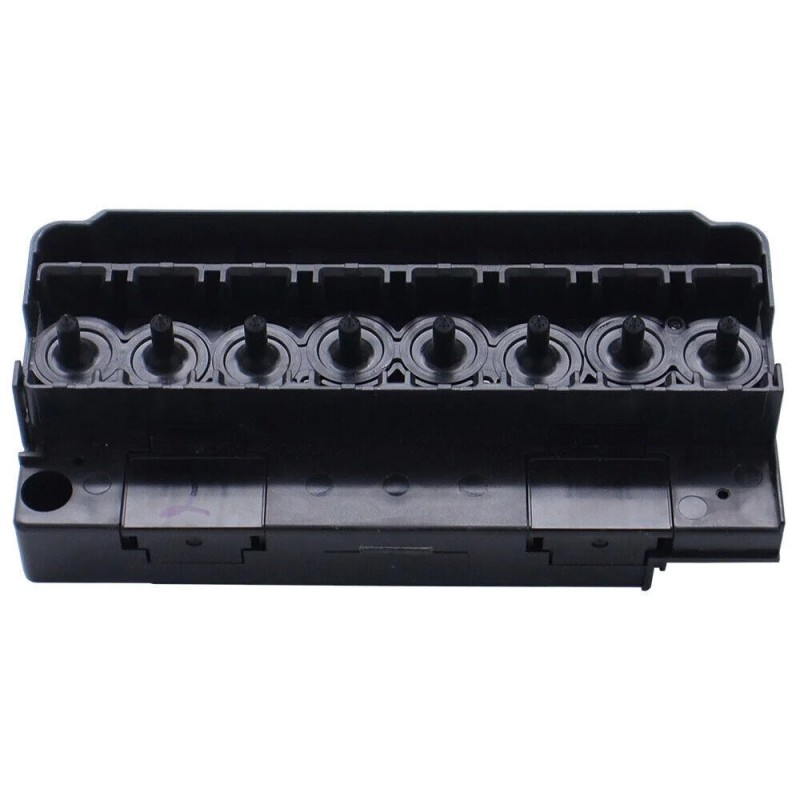

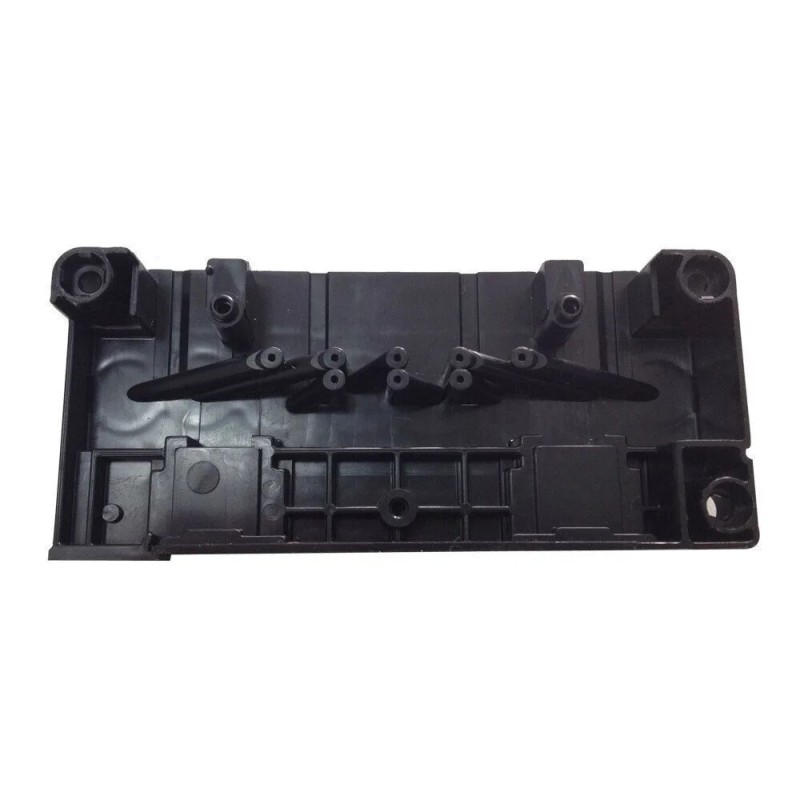

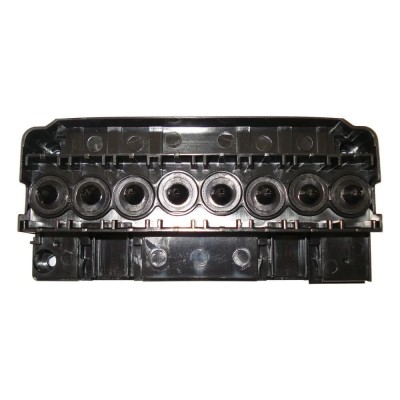

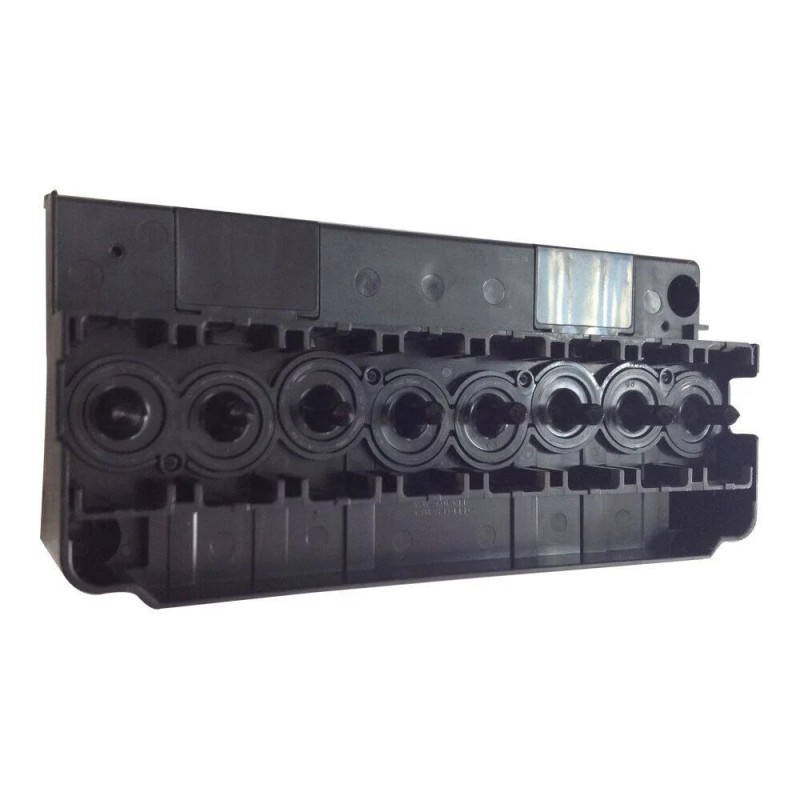

Epson DX5 Solvent Printhead Manifold Adapter Original
- Write a review
$58.00
The genuine Epson DX5 Solvent Printhead Manifold (Adapter Top) is an original, brand-new solvent-resistant replacement manifold engineered for Epson DX5 printheads used in eco-solvent and solvent wide-format printers.
Product Overview
The Epson DX5 Solvent Printhead Manifold Adapter is a genuine original top manifold designed specifically to convert, repair, or restore Epson DX5 printheads for eco-solvent and solvent ink systems. Manufactured with high-grade, chemically resistant polymers, this adapter housing connects the ink dampers directly to the internal ceramic piezo nozzle assembly of the DX5 head.
It is the primary component replaced when recovering a DX5 printhead suffering from cracked damper ports, air leaks, or internal channel cross-leakage caused by degraded manifold gaskets. Installing an original solvent manifold restores airtight seal integrity, ensuring proper vacuum pressure during ink priming and print head cleaning cycles.
Part Information
- Brand: Epson
- Product Type: Printhead Manifold / Adapter Top Cover
- Compatible Printhead Model: Epson DX5 MicroPiezo Printhead (F186000 / F158000 / F160000)
- Chemical Resistance: Eco-Solvent, Solvent, Water-Based, and Sublimation Inks
- Condition: 100% Genuine Original, Brand New
- Application: Eco-Solvent Wide-Format Signage & Banner Printers
Technical Specifications
| Specification | Detail |
|---|---|
| Component Name | DX5 Solvent Printhead Manifold / Adapter Top |
| Compatible Head Type | Epson DX5 (Gold Face & Oil/Solvent Models) |
| Ink Compatibility | Eco-Solvent, Solvent, Dye-Sublimation, Water-Based |
| Material Construction | Chemical-Resistant Industrial Polymer & Solvent Seals |
| Function | Dampers-to-Head Connector & Channel Divider |
| Condition | 100% Genuine Original, Brand New |
Technical Precision & Operational Advisory
Solvent Chemistry Seal: This adapter is constructed from solvent-resistant materials specifically designed to withstand harsh eco-solvent and solvent inks. Ensure the internal O-rings and rubber gaskets are aligned precisely during installation to prevent channel cross-contamination or ink leaks.
Handle Ceramic Base carefully: When removing the old manifold from the DX5 printhead body, exercise extreme care not to scratch or damage the fragile piezo driver pins or internal filter mesh.
Damper Replacement Advisory: It is strongly recommended to install brand-new eco-solvent ink dampers along with the new manifold to ensure an airtight seal on the intake ports and prevent air starvation during high-speed printing.
Compatible Printers or Equipment
Wide-format eco-solvent and solvent printers utilizing Epson DX5 printheads (Mimaki JV33/JV5, Mutoh ValueJet 1204/1304/1604/1614, Roland, Xenons, Wit-Color, Gongzheng, Thunderjet, and various Chinese eco-solvent printers).
Important Compatibility Notice: Please verify your existing printhead type (DX5) and manifold port configuration before ordering. If you need assistance determining if this adapter fits your specific printhead, please contact us prior to purchase.
Packaging and Shipping: The product will be securely packed in protective packaging to ensure safe delivery during international shipping.
Genuine Product Notice: This product is supplied as a 100% genuine original replacement manifold component.
Warranty and Customer Protection: This product is covered by a 1-year warranty against manufacturing defects, subject to applicable warranty terms and conditions. We also provide a 30-day store guarantee for customer protection. If your item arrives damaged, defective, or does not function properly upon receipt, please contact us within 30 days of delivery.
