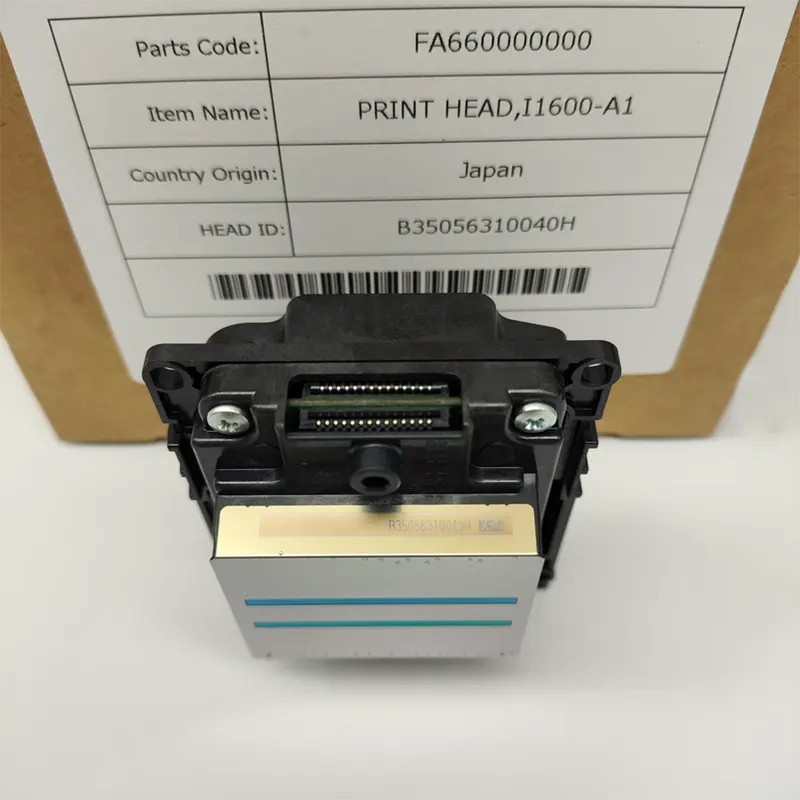

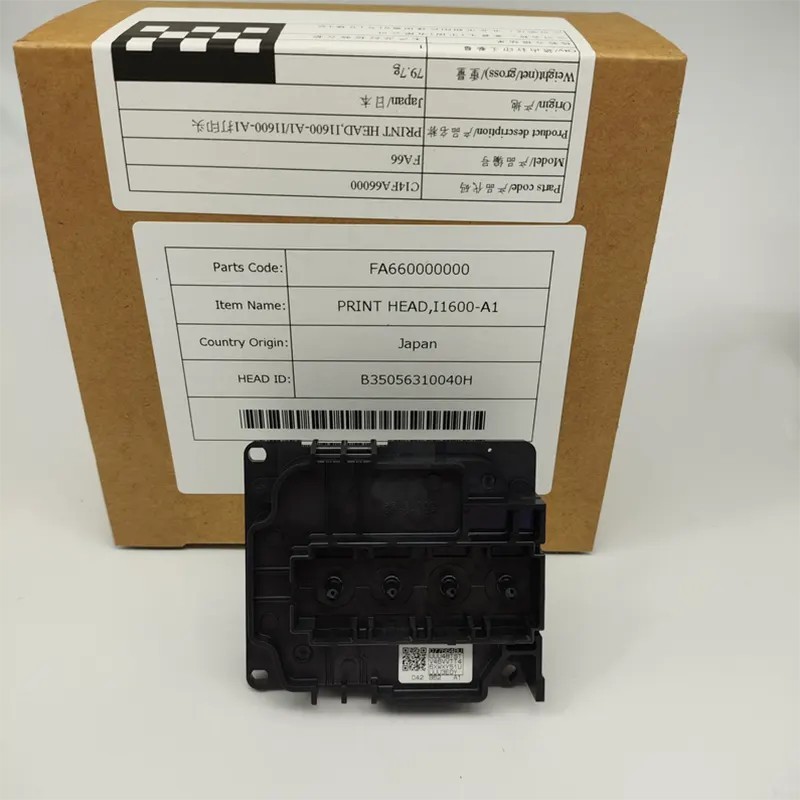

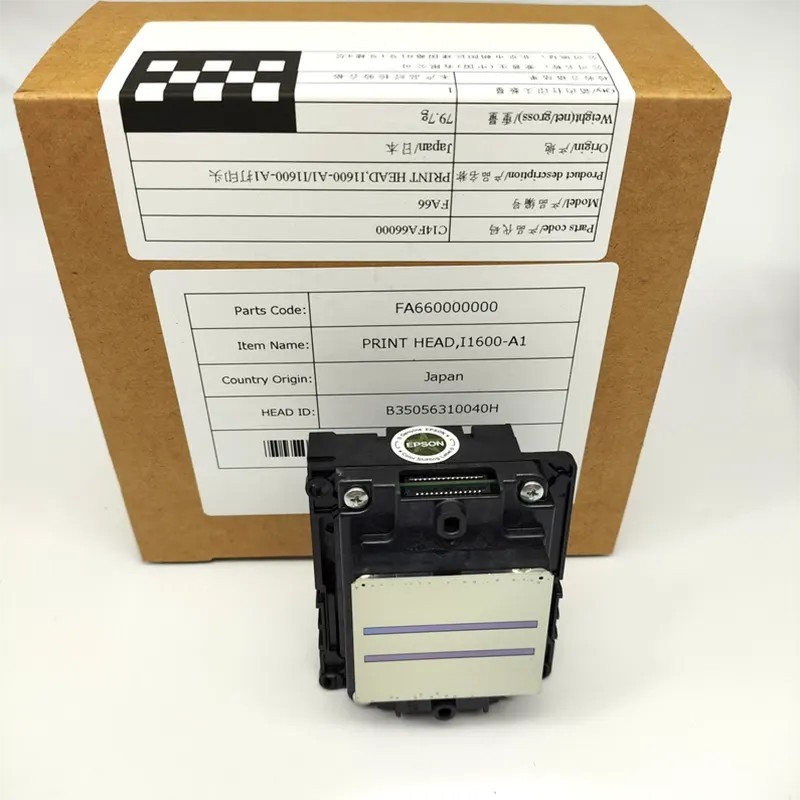

Epson i1600-A1 Water-Based Printhead PrecisionCore MicroTFP

Product Overview

The Epson i1600-A1 Printhead (Model No.: PTEP031) is a genuine original, high-performance industrial replacement head powered by Epson’s PrecisionCore MicroTFP technology. Engineered specifically for aqueous (water-based) inks, dye-sublimation, and Direct-to-Film (DTF) textile printers, the i1600-A1 delivers a compact design with high nozzle density, excellent jetting accuracy, and high durability for commercial wide-format digital printing.

Featuring 1,600 active nozzles distributed across 4 independent color rows (400 nozzles per row at 300 npi), the i1600-A1 allows flexible 2-color or 4-color configuration. Operating at a native 600 dpi resolution with variable drop size capabilities, it ensures smooth color gradients, sharp vector detail, and high production speeds.

Part Information

• Brand: Epson

• Model Number: i1600-A1 (Part No.: PTEP031)

• Printhead Series: PrecisionCore MicroTFP Industrial Series

• Ink Compatibility: Water-Based (Aqueous) Ink, Dye-Sublimation Ink, Textile/DTF Ink

• Nozzle Configuration: 1,600 Nozzles (4 Rows x 400 Nozzles)

• Nozzle Pitch / Density: 300 npi per row (600 dpi across 2 rows)

• Number of Ink Channels: 4 Channels (Supports 2 or 4 Colors)

• Effective Print Width: 1.33 inches (33.8 mm)

• Drop Volume Range: Multi-drop Variable Droplet Technology (3.2 to 5.0 picoliters)

• Max Jetting Frequency: Up to 43.2 kHz

• Viscosity Range: 3.0 – 5.0 mPa·s

• Condition: 100% Genuine Original, Brand New (Made in Japan)

Technical Specifications

Technical Precision & Operational Advisory

• Aqueous Media Only: The i1600-A1 is strictly designed for water-based, dye-sublimation, and DTF aqueous inks. Do not use UV-curable, eco-solvent, or harsh industrial solvent inks, as non-compatible chemistry will dissolve internal membrane seals and void functionality.

• Static & Circuit Safety: PrecisionCore driver boards are highly sensitive to electrostatic discharge (ESD) and voltage spikes. Technicians must wear anti-static wrist straps during installation. Always verify that main board power is completely off before connecting or disconnecting flat cables (FFC).

• Cable Alignment: Inspect all flat flexible cables (FFC) and pins for bend marks, liquid ink, or dust contamination. Connecting a misaligned or shorted cable will cause electrical burnout to both the printhead and motherboard driver chips upon power-up.

• System Maintenance: Ensure damper valves, cap tops, and peristaltic pumps are thoroughly flushed or replaced prior to introducing ink to the new printhead to avoid immediate contamination or air leakage.

Compatible Printers or Equipment

Important Compatibility Notice

Please verify your existing part number, ink type, and equipment model before placing an order. If you are unsure about compatibility, please contact us with your printer model and driver board setup.

Packaging and Shipping

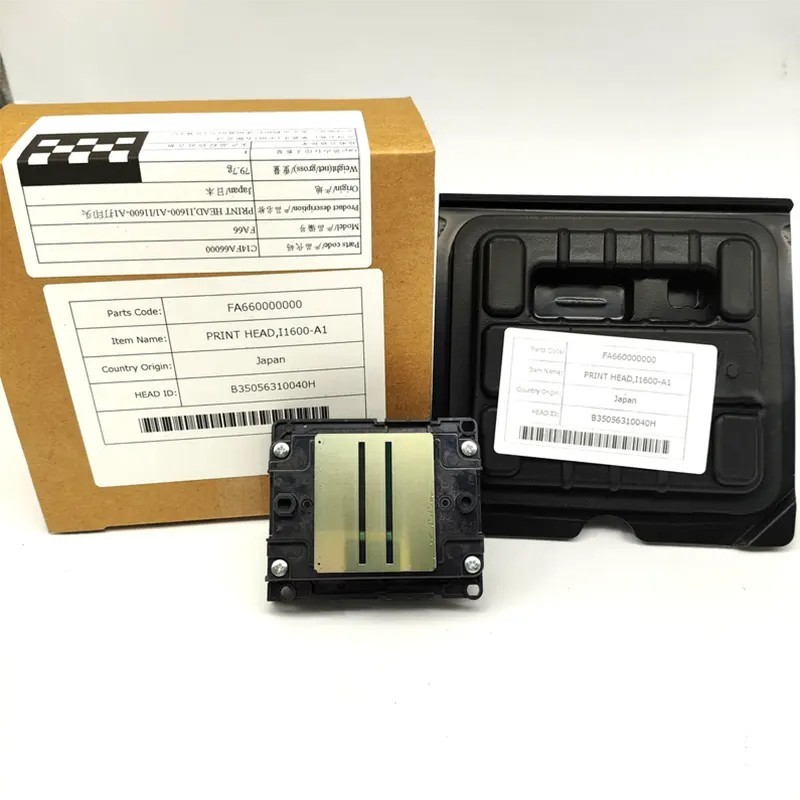

The product will be carefully packed in its original anti-static protective factory packaging to ensure safe transit during international shipping.

Genuine Product Notice

This product is supplied as a 100% genuine original replacement part (Made in Japan).

Terms, Warranty & Customer Protection

• Pre-Installation Verification: This is an industrial component that must be installed by experienced technicians. We guarantee that the item received is 100% genuine, brand-new, and authentic from Epson.

• Consumable Item Policy: Because printheads are sensitive electronic consumables that depend on printer power stability, cable condition, and ink formulation, once the printhead is installed on the machine or introduced to ink, it is non-refundable and non-exchangeable.

• Return Policy Before Use: Unused and uninstalled items in original factory packaging may be returned or exchanged under our store policy prior to installation. Please contact us before returning any item.
