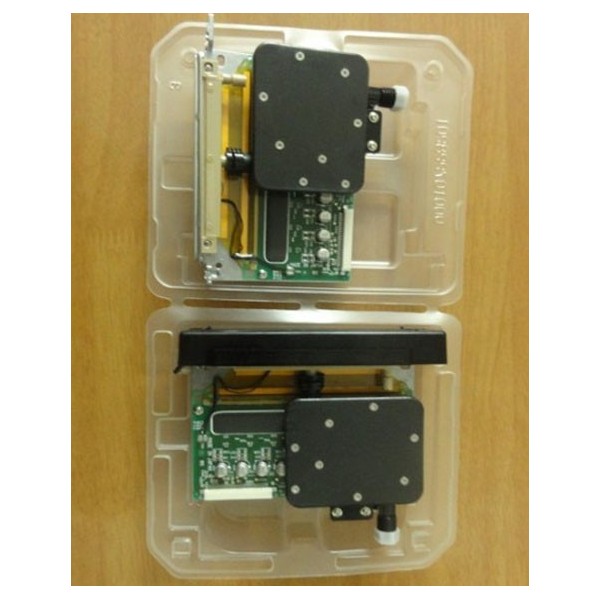

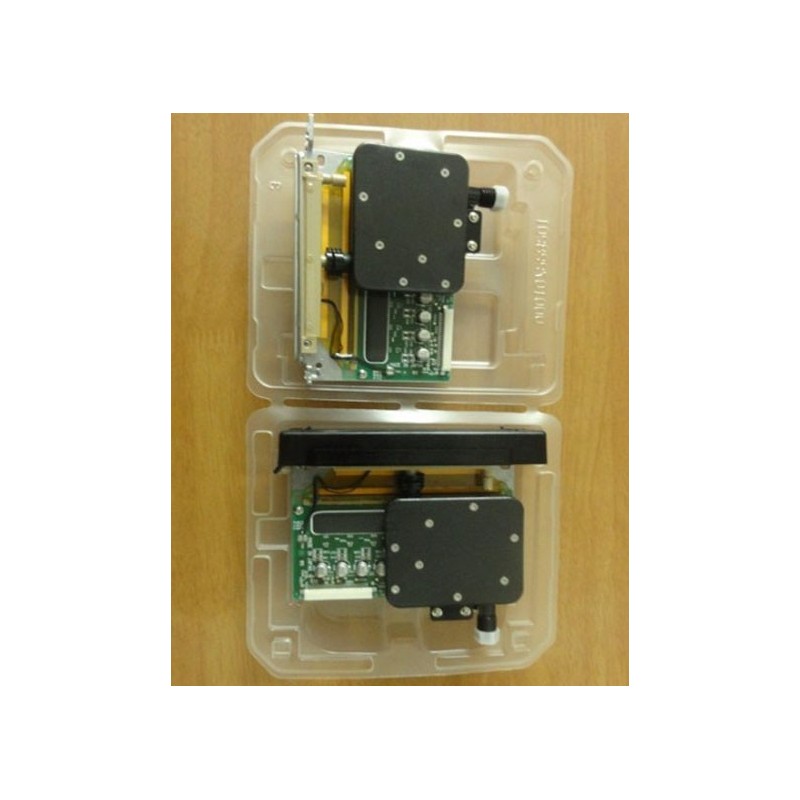

Original New Seiko Spt510/50pl Printhead

Product Overview

The Original New Seiko SPT510/50PL Printhead is a heavy-duty industrial inkjet printhead designed for grand-format digital printing systems. Operating on advanced drop-on-demand piezo electric technology, it features 510 active nozzles capable of delivering high-speed printing with a generous 50 picoliter drop volume. Built with an integrated protective steel faceplate, this durable printhead offers superior resistance to mechanical wear and standard head strikes, lasting 4 to 5 times longer than typical 128-nozzle printheads.

Engineered for broad compatibility across grand-format printing machinery, the SPT510/50PL delivers a native resolution of 180 dpi and maximum output resolutions reaching up to 720 dpi. Its robust construction ensures continuous productivity, high ink density, and vibrant color coverage in high-volume production environments.

Part Information

• Product Name: Original New Seiko Spt510/50pl Printhead
• Brand: Seiko
• Product Type: Inkjet Printhead
• Condition: Original / Brand New
• Model / Part Reference: Seiko SPT510/50PL
• Technology: Drop-On-Demand Piezo Electric
• Active Nozzles: 510 Nozzles
• Native Resolution: 180 dpi
• Maximum Resolution: 720 dpi
• Droplet Volume: 50 picoliters (50pl)
• Firing Frequency: 6 – 8 kHz
• Faceplate Protection: Steel-Plate Protection Construction

Key Features & Operational Advantages

• Industrial Steel-Plate Guard: Integrated steel plate surface provides high resistance against friction and mechanical impacts, offering 4–5 times longer operational life compared to 128-nozzle printheads.
• 50pl Droplet Size: Large droplet volume ensures high ink coverage and rich density, making it ideal for outdoor banners, billboards, and large-format graphics.
• High Speed & Productivity: 510 active nozzles combined with a 6–8 kHz firing frequency deliver rapid throughput on grand-format printers.
• Original Japanese Engineering: Authentic Seiko component manufactured under strict quality standards for consistent jetting stability.

Technical Specifications

Operational Advisory & Installation Guidelines

• Precision Component Handling: Printheads are delicate electronic devices. Always handle with extreme care and avoid touching nozzle surfaces or electrical contact pins.
• Power Isolation: Always ensure the main printer power is turned off completely before attaching or removing head ribbon cables.
• Electrostatic Protection: Utilize proper ESD grounding precautions (such as anti-static wrist straps) during installation to safeguard internal driver circuits.
• Service Technician Setup: Installation by a qualified service technician is strongly recommended to ensure proper alignment and driver configuration.
• Electronic Part Return Notice: Installed, unsealed, or ink-primed printheads cannot be returned or replaced due to chemical and electronic sensitivity.

Compatible Printers or Equipment

(Please verify head driver board compatibility and system voltage parameters before mounting.)

Packaging and Delivery

• Packaging: Vacuum-sealed in specialized protective anti-static packaging to ensure complete safety against environmental and ESD risks during transport.
• Worldwide Delivery: Available for international dispatch via DHL, FedEx, UPS, or standard logistics carriers.

Warranty and Customer Protection

• 1-Year Warranty: Covered under applicable product warranty terms for non-installed original items.
• 30-Day Protection Guarantee: Inspect your shipment upon delivery. Any shipping damage or initial defects must be reported within 30 days of receipt.
• Electronic Part Return Notice: Sensitive electronic items must remain in original unopened packaging to qualify for return or replacement options.
