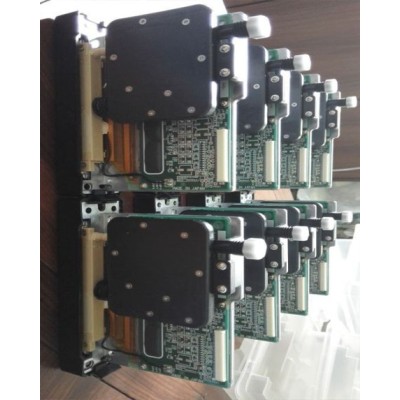

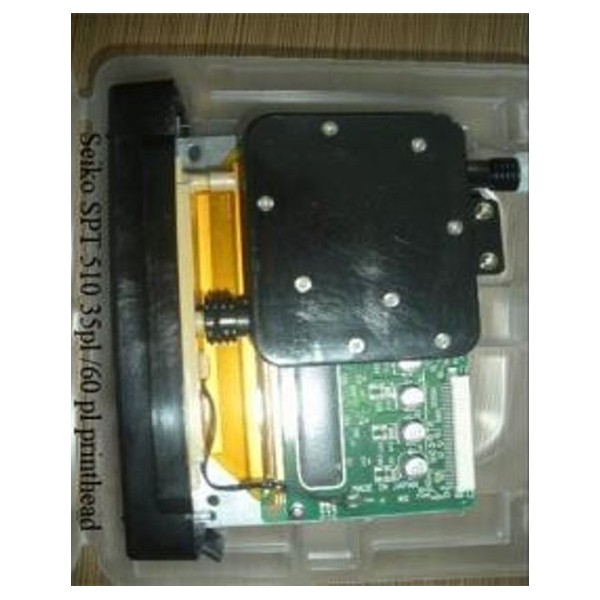

Original Seiko -Spt510/35 PL Print Head
- Write a review
$320.00
The Original Seiko SPT510/35PL Print Head (PRH-SPT-002-E) is an authentic 35 picoliter piezo electric drop-on-demand printhead designed for wide-format eco-solvent and solvent digital printers.
Product Overview
The Original Seiko SPT510/35PL Print Head (Part Reference: PRH-SPT-002-E) is an authentic, high-performance industrial printhead manufactured by Seiko. Delivering high-resolution output with a 35 picoliter drop volume, it offers exceptional color coverage and durability across wide-format solvent printer models.
While performing identically to the newer IC driver chip variant on most machines, this model (PRH-SPT-002-E with legacy IC chip configuration) is strictly required for specific legacy equipment setups, such as INFINITI and CHALLENGER FY-3208H printers manufactured before January 5, 2011, equipped with USB driver boards.
Key Features & Operational Advantages
- Guaranteed Authenticity: Direct original replacement manufactured to meet strict Japanese engineering and production standards.
- 35pl Droplet Size: Ideal for high-density solvent printing, providing solid color fills, rich vibrancy, and long-lasting output.
- Legacy System Compatibility: Essential drop-in replacement part for older printer configurations utilizing legacy IC driver chips and USB control boards.
- Wide-Format Versatility: Broad compatibility across leading industrial printer brands, including Infiniti, Phaeton, Icontek, SID, Crystaljet, Roland, and VUTEk.
Technical Specifications
| Model Reference | Seiko SPT510/35PL (PRH-SPT-002-E) |
| Brand | Seiko |
| Condition | Brand New Original |
| Droplet Volume | 35 picoliters (35pl) |
| Driver Chip Configuration | Legacy IC Chip (PRH-SPT-002-E) |
| Technology | Piezo Electric Drop-On-Demand |
Operational Advisory & Installation Guidelines
- Machine Compatibility Verification: Specifically required for INFINITI / CHALLENGER FY-3208H printers (Serial Numbers prior to 32026212974) produced before January 5, 2011, equipped with USB boards.
- Precision Handling: Handle the printhead with extreme care. Never touch the exposed nozzle plate or delicate electrical contact pins.
- Power Isolation: Always ensure the main printer power is completely turned off and disconnected before attaching or removing FFC ribbon cables.
- ESD Safety: Use appropriate electrostatic discharge (ESD) protective gear during installation to safeguard sensitive onboard IC circuitry.
- Non-Returnable Item Notice: Installed, unsealed, or ink-primed printheads cannot be returned or refunded due to chemical and electronic sensitivity.
Compatible Printers or Equipment
| Manufacturer | Compatible Models |
|---|---|
| Infiniti | FY-3208HA, FY-3206HA, FY-3208HF, FY-3206HF, FY-3208H*, FY-3206H, FY-3208R, FY-3206R, FY-3208G, FY-3204G |
| Phaeton | UD-3206E, UD-3208E, UD-3206G, UD-3208G, UD-3208GF, UD-3206GF, UD-3208H |
| Icontek | TW-3306HC, TW-3308HC, TW-3306HA, TW-1806A, TW-3306HD, TW-3308HD, TW-3308HZ, M1, M3 |
| SID | XCS PLUS 320-8H, XCS 320-8H, XES 250, XES 320, XH250 |
| Crystaljet | S1806SPT510_35PL, S3306IISPT510_35PL, F3308IISPT510_35PL, S4306SPT510_35PL, F4308SPT510_35PL, S6306IISPT510_35PL, F6308IISPT510_35PL |
| Roland | AJ-1000, AJ-740 |
| VUTEk | QS3200, QS3200R |
(Note: Required for Infiniti FY-3208H models produced before Jan 5, 2011 with serial numbers prior to 32026212974 and USB boards.)
Packaging and Delivery
- Packaging: Safely packed using anti-static and shock-resistant protective packaging to ensure safe delivery.
- Worldwide Shipping: Available for international dispatch via standard logistics carriers.
Warranty and Customer Protection
- 1-Year Warranty: Covered under applicable product warranty terms for non-installed original items.
- 30-Day Protection Guarantee: Inspect your shipment upon delivery. Any shipping damage or initial defects must be reported within 30 days of receipt.
- Electronic Part Return Notice: Sensitive electronic items must remain in original unopened packaging to qualify for return or replacement options.
