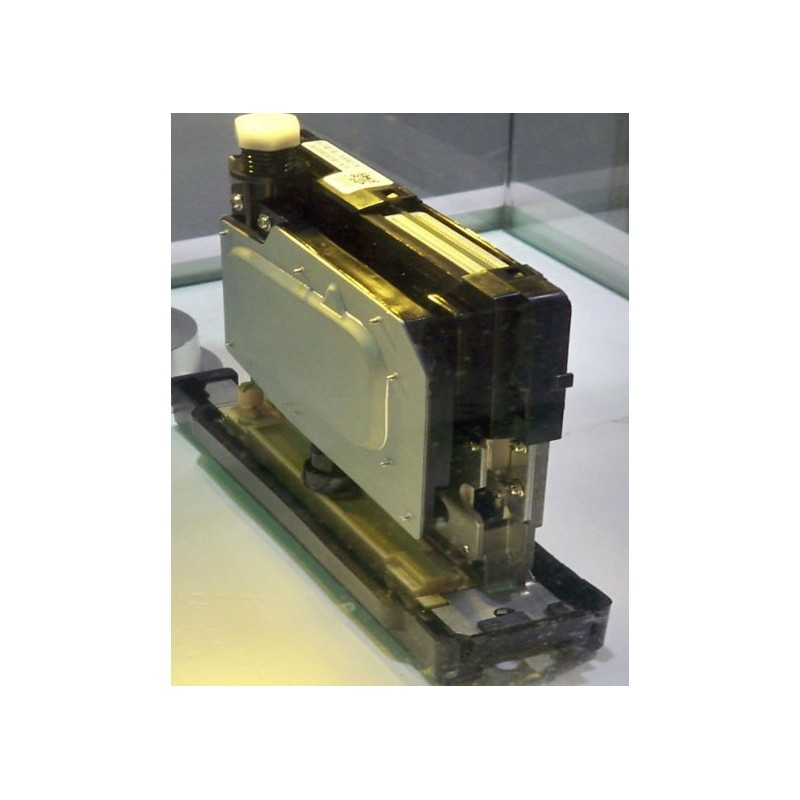

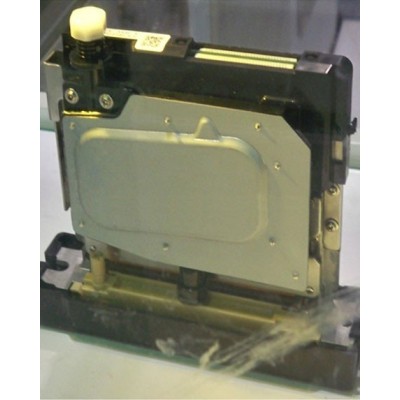

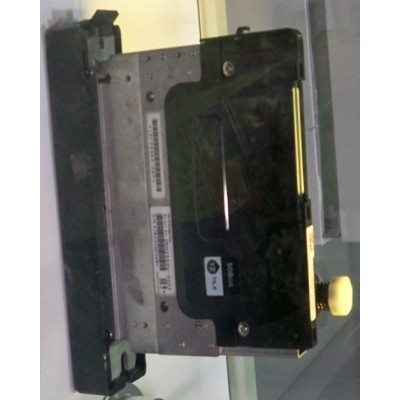

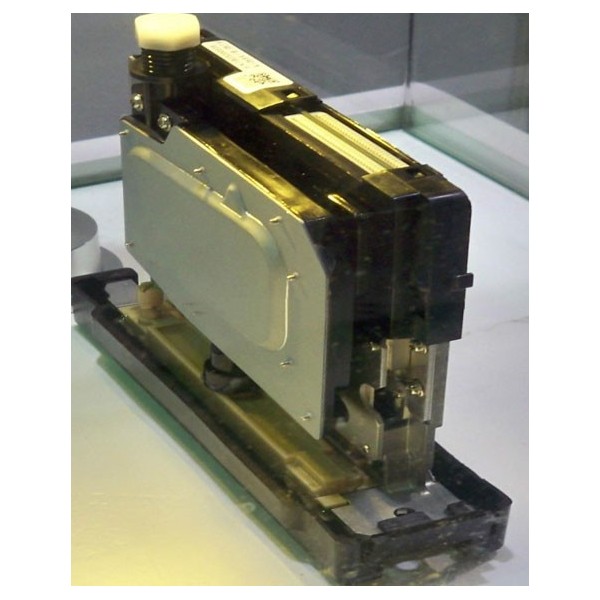

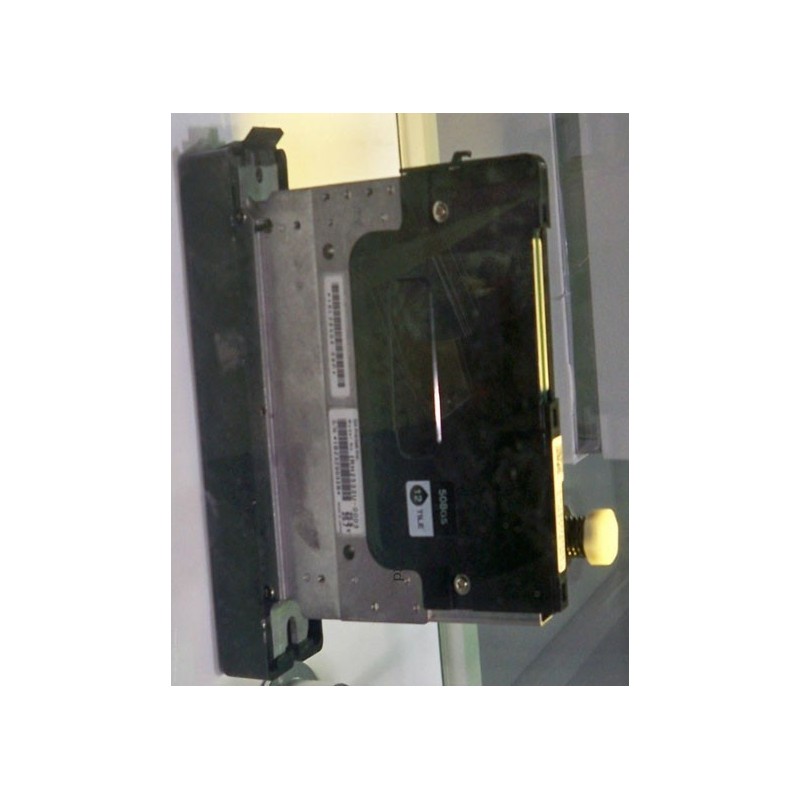

Brand New Seiko 508GS 12PL Print Head
- Write a review
$685.00
The Seiko 508GS 12PL (IRH2533U-2410) is a state-of-the-art grayscale piezo printhead featuring a built-in damper assembly, non-wetting nozzle plate, and support for solvent and UV inks.
Product Overview
The Brand New Seiko 508GS 12PL Print Head is an original industrial grayscale inkjet component engineered by Seiko for high-speed, high-resolution solvent and UV printing applications. Featuring Seiko original part number IRH2533U-2410, this state-of-the-art printhead comes equipped with an integrated damper assembly and a protective nozzle guard to ensure consistent fluid delivery and operational longevity.
Built with a 72mm active print width, 508 active nozzles, and a non-wetting nozzle plate, the 508GS delivers precise multi-drop jetting. It supports drop volumes in multiples of 12 picoliters (up to 7 drops per dot) operating at firing frequencies of 18 kHz and higher.
Key Features & Operational Advantages
- Grayscale Technology: Multi-drop jetting capability delivers smooth gradient transitions and crisp details using 12pl drop volume increments.
- Built-In Damper Assembly: Integrated damper structure optimizes internal ink pressure and fluid stability.
- Non-Wetting Nozzle Plate: Protective nozzle guard and specialized surface coating prevent ink buildup and maintenance downtime.
- Dual Ink Capability: Fully compatible with both solvent-based and UV-curable ink chemistries.
Technical Specifications
| Model Reference | Seiko 508GS (IRH2533U-2410) |
| Brand | Seiko |
| Active Print Width | 72 mm |
| Nozzle Count | 508 |
| Physical Resolution | 180 dpi |
| Firing Frequency | 18 kHz (and multiples) |
| Droplet Volume | Multiples of 12pl (up to 7 drops) |
| Ink Compatibility | Solvent and UV Inks |
| Nozzle Plate Type | Non-Wetting |
Compatible Printers
| Manufacturer | Compatible Models |
|---|---|
| CrystalJet | 6000 Series |
| Crystek | X5300 |
| Forni | HS1804 |
| Flora | Models utilizing Seiko 508GS 12PL solvent heads |
| Icontek | TW-1800J3, TW-3308HG, TW-3200F3, TW-3308MG |
| Infiniti / Challenger | FY-3208GS, FY-3208T, FY-3266T, FY-3286T |
| Kerajet | K700 |
| Leyenda | 1800T3, 3200F3 |
| Nuocai | NC-SPT2531 |
| OraJet | J18 |
Operational Advisory & Installation Guidelines
- Precision Component Handling: Printheads are delicate electronic devices. Always handle with care and avoid touching nozzle surfaces or electrical contact pins.
- Power Isolation: Always verify that main printer power is shut off prior to connecting or disconnecting ribbon cables.
- Electrostatic Protection: Use ESD wrist straps and proper grounding procedures during installation to protect drive electronics.
- Calibration: Update voltage profiles and head drive settings according to factory parameters upon mounting.
- Non-Returnable Item Notice: Sensitive electronic items must remain in original unopened packaging to qualify for return or replacement options. Installed or unsealed components cannot be returned.
IRH2533U-2410
