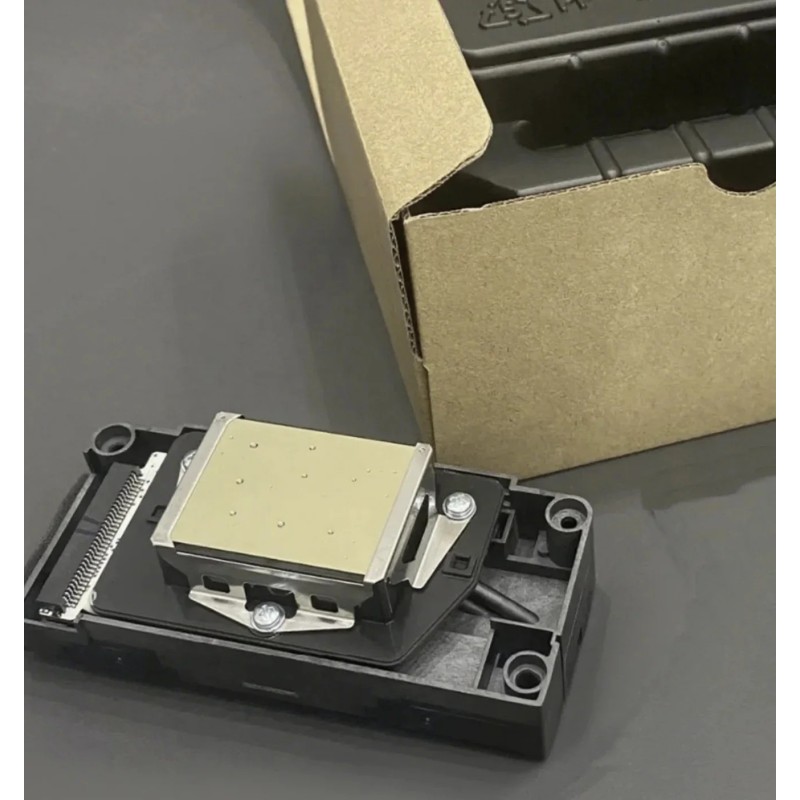

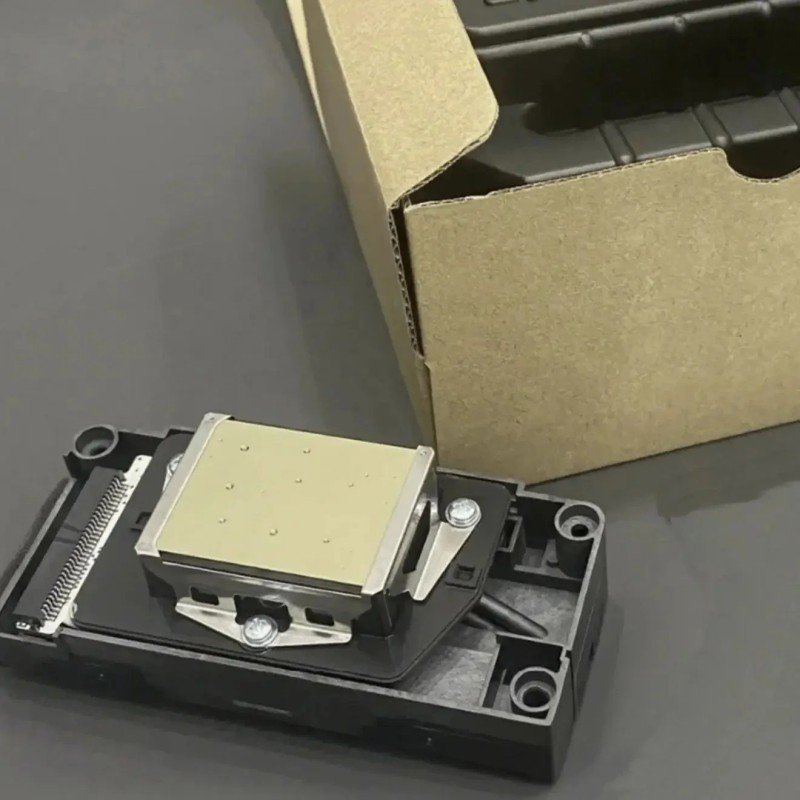

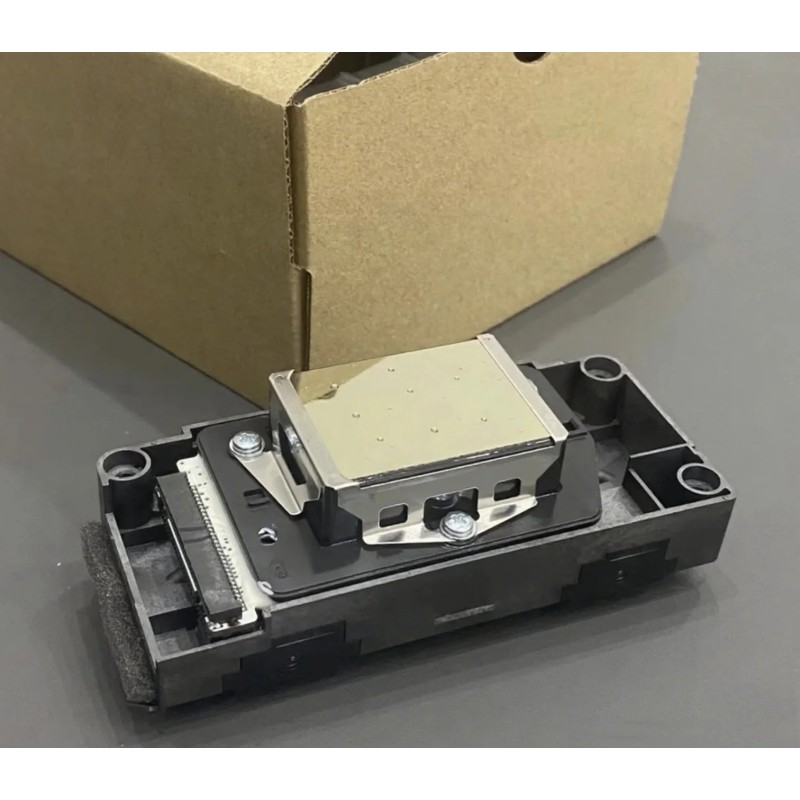

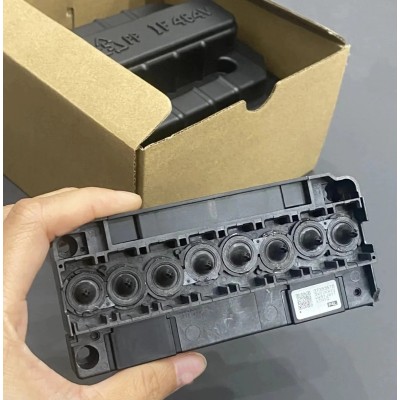

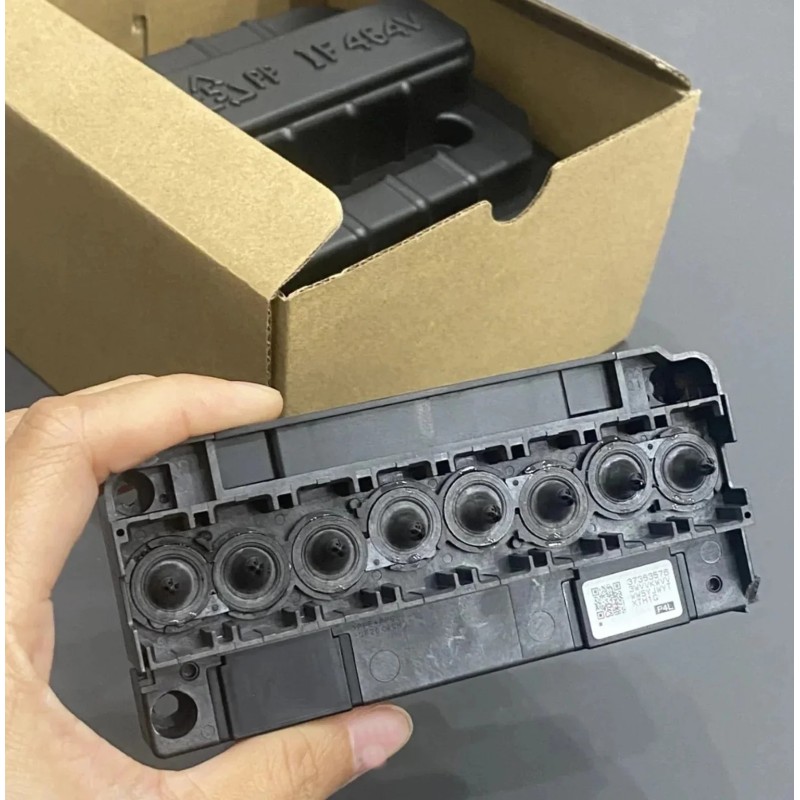

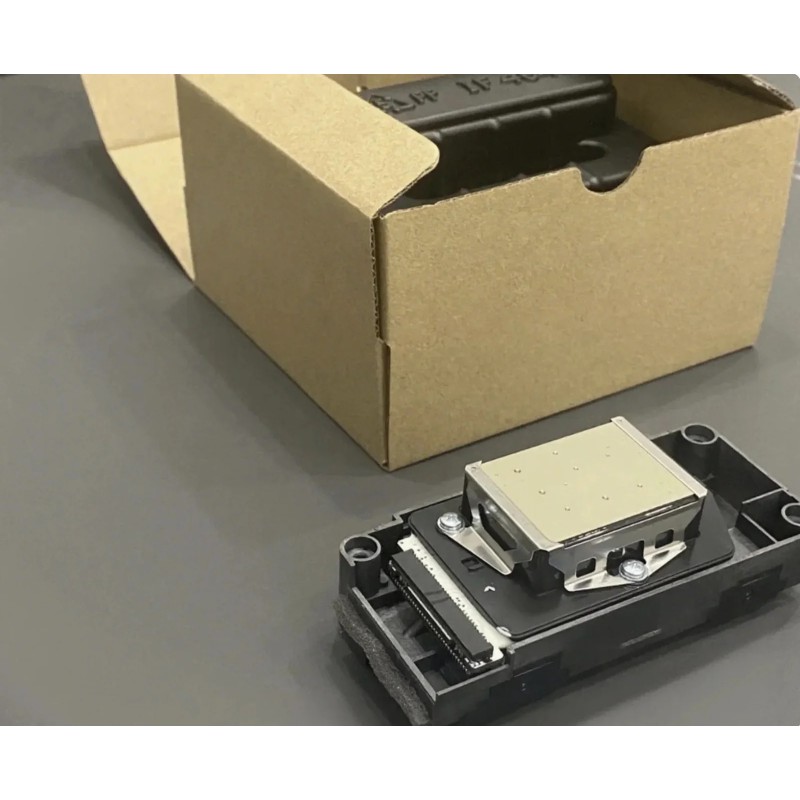

Epson DX5 Eco-Solvent Printhead F186000 (Unlocked / Uncoded)
- Write a review
$624.00
The genuine Epson DX5 F186000 Unlocked Eco-Solvent Printhead is an original, brand-new MicroPiezo printhead engineered for wide-format Chinese eco-solvent printers and custom flatbed machines requiring uncoded DX5 heads.
Product Overview
The Epson DX5 Eco-Solvent Printhead (Part Code: F186000) is an original, brand-new 8-line MicroPiezo replacement printhead designed for high-resolution wide-format solvent, eco-solvent, and custom flatbed printing systems. Featuring 8 lines of 180 nozzles (1,440 nozzles total) with a native resolution of 1400 dpi and variable droplet technology ranging from 1.5 to 21 picoliters, this printhead provides rich color density, sharp fine details, and smooth gradient transitions.
This product is an unlocked (uncoded) DX5 printhead unit supplied in factory-sealed Epson packaging. It operates directly across all DX5-compatible Chinese wide-format eco-solvent plotters without requiring any printhead encryption decoders or key chips.
Technical Specifications
| Epson Part Code | F186000 |
| Printhead Generation | MicroPiezo DX5 (Unlocked / Uncoded) |
| Active Nozzles | 1,440 Nozzles (8 Lines x 180 Nozzles) |
| Native Resolution | 1440 dpi |
| Firing Frequency | 8 kHz |
| Droplet Size | 1.5 – 21 picoliters (Variable Droplet) |
| Ink Compatibility | Eco-Solvent, Mild Solvent, Solvent, Dye/Pigment |
| Condition | 100% Genuine Original, Sealed Packaging |
Technical Precision & Operational Advisory
- System Compatibility Notice: This uncoded F186000 head is designed specifically for Chinese eco-solvent printers and custom DTG/flatbed modifications. Do NOT use this head on Mutoh ValueJet or Mimaki JV33 / JV5 printers, as those machines require different driving voltages and specific encrypted head parameters.
- Flat Flexible Cable (FFC) Replacement: It is strongly advised to replace head ribbon cables whenever installing a new DX5 printhead. Corroded, bent, or ink-contaminated cable leads will short-circuit internal piezo driver transistors, resulting in immediate board fuse or printhead failure upon startup.
- Electrostatic Discharge (ESD) Protection: MicroPiezo actuators are static-sensitive. Installation technicians must use anti-static wrist grounding straps and ensure main system power and wall AC plugs are fully disconnected before handling internal wiring.
- Capping & Solvent Maintenance: Always replace or thoroughly service solvent wiper blades, cap top assemblies, and peristaltic pump tubes during head replacement to prevent head dry-out and verify proper vacuum suction.
Compatible Printers or Equipment
| Galaxy / UD Series | A1801S, A1802S, BY-1801, UD-1612LC, UD-1612W, UD-161LC, UD-161W, UD-1812LC, UD-181LA, UD-181LB, UD-181LC, UD-2112LA, UD-2112LC, UD-211LA, UD-211LC, UD-2512LA, UD-2512LC, UD-251LA, UD-251LC |
| Allsign & WER | Allsign AS1802S, AS3202S, E6184 | WER ES160, ES1802, ES2502, ES3202, ES3202I |
| Wit-Color & Xunfei | Wit-Color Ultra 9000, Ultra 9100 | Xunfei ME1300, ME1600, ME900, VE1800, VE2600 |
| Freejet & Custom DTG | Freejet TX 330, Freejet TX Plus 330, Zhongye DTG, Custom Flatbed Conversions |
| Other Eco-Solvent Brands | MeiTu (MT-E1802S, MT-Starjet 5.0), PrismaJet (GE 1802 Series), Rodin 1804, Smart Color FT1800, Sunfiner X4740ASE, Taimes X2A-7405SE |
| Epson Desktop Photo | Epson Stylus Photo R1900, R2000 |
Warranty and Customer Protection
This product is covered by a 1-year warranty against manufacturing defects, subject to applicable warranty terms and conditions. We also provide a 30-day store guarantee for customer protection.
