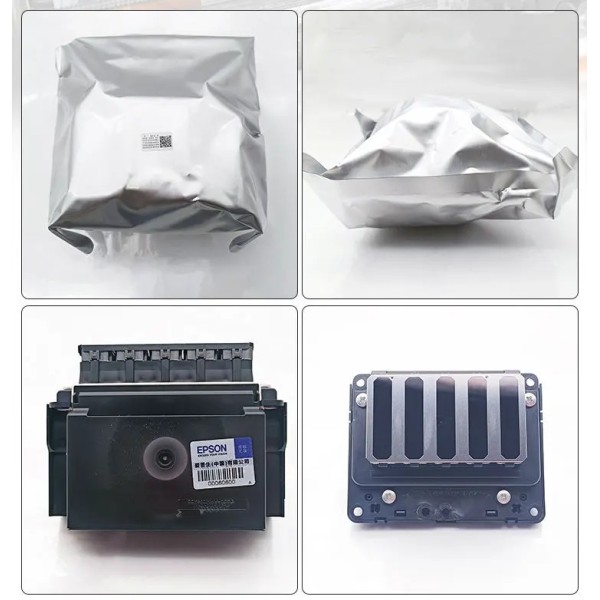

Epson SureColor S Advanced MicroPiezo TFP Printhead FA06171 (IA522V-17 / FA06072 Replacement)

Product Overview

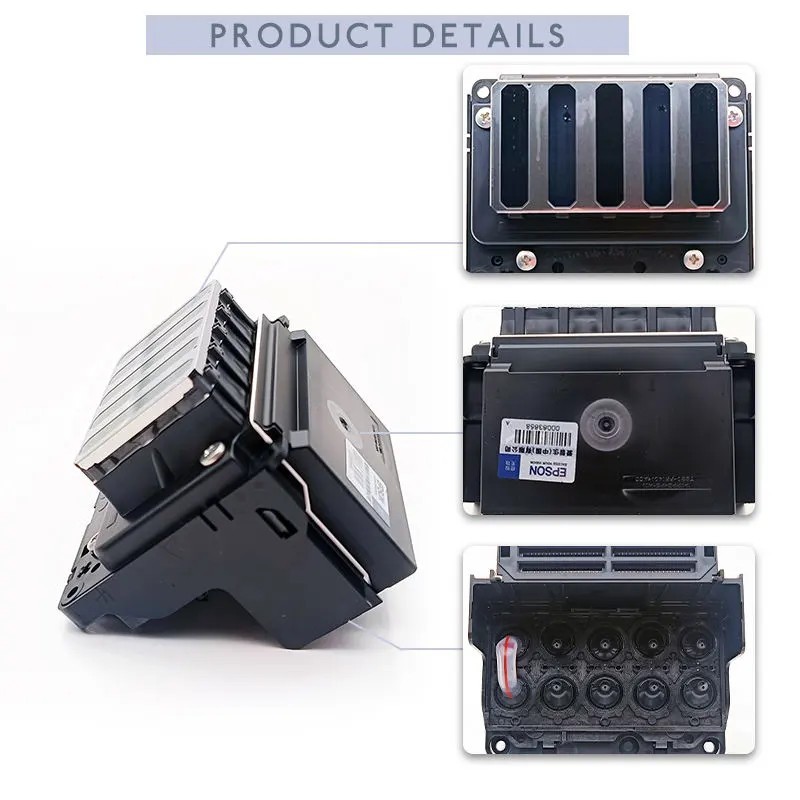

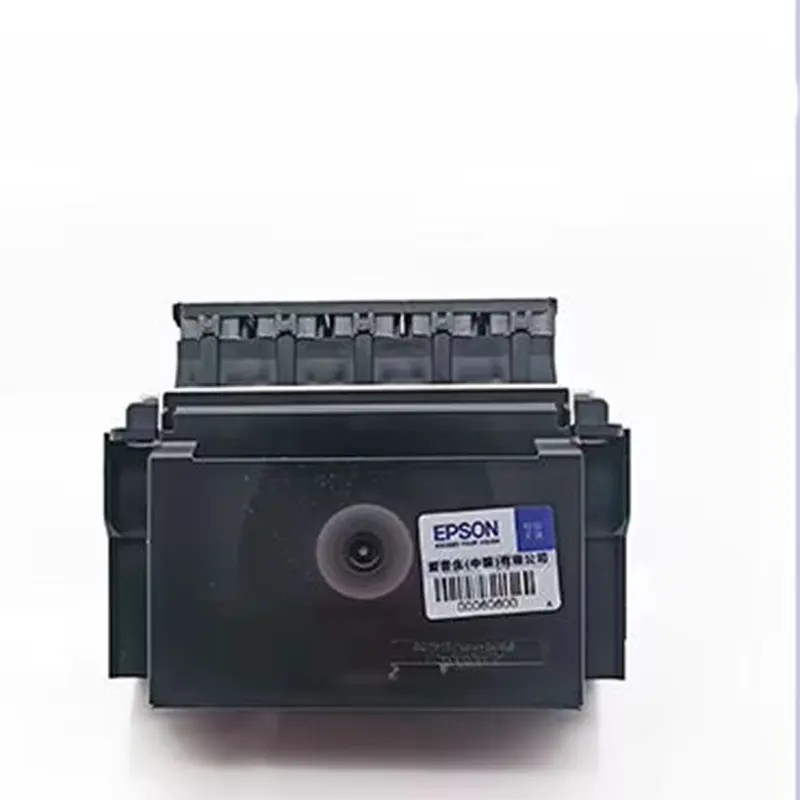

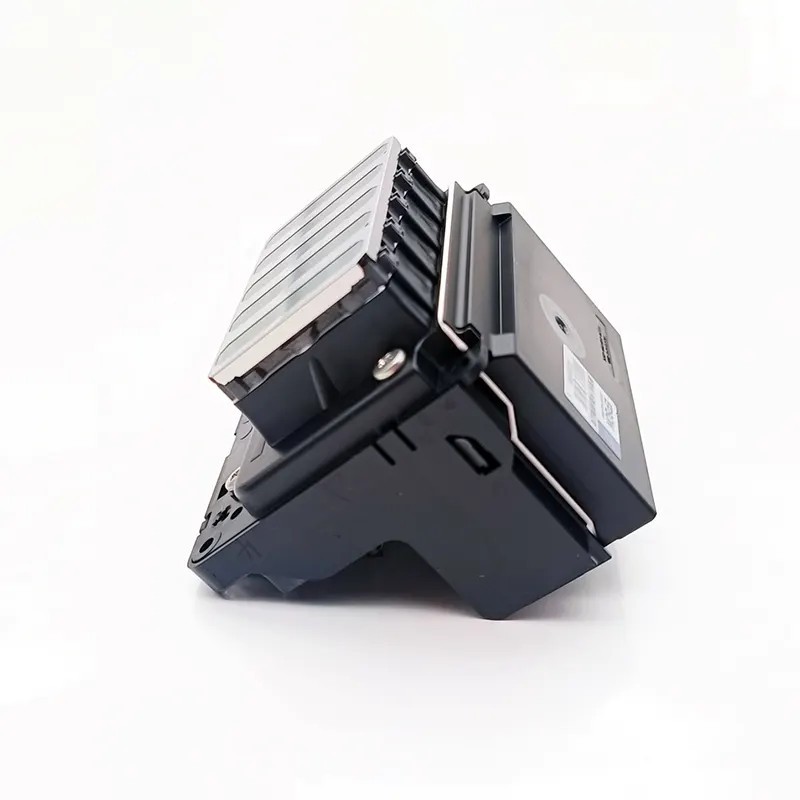

The Epson SureColor S Advanced MicroPiezo TFP Printhead (Part Code: FA06171, Catalog Reference: IA522V-17) is a 100% genuine original high-performance 10-channel replacement printhead designed for Epson's high-productivity SureColor S-Series eco-solvent wide-format printers. Featuring advanced ink-repelling coating technology and operating at high jetting frequencies up to 50 kHz, this printhead incorporates 360 nozzles per channel (3,600 active nozzles total) to deliver variable droplet sizes as fine as 1.5 picoliters for smooth gradations, vibrant color density, and razor-sharp photographic prints.

Engineered specifically to handle mild and eco-solvent UltraChrome GS2, GSX, and GS3 ink formulations, the FA06171 serves as an exact OEM replacement component. It supersedes older, discontinued Epson part numbers—including FA06072, FA06151, FA06131, FA06092, FA06090, FA06091, FA06000, FA06070, FA06050, IA522V-9, IA522V-13, and IA522V-15—to eliminate permanent nozzle dropouts, physical faceplate damage, driver board electrical errors, or persistent horizontal banding.

Part Information

• Brand: Epson
• Product Type: Large Format Printer (LFP) Printhead
• Primary Part Code: FA06171
• Catalog Reference / Revision: IA522V-17
• Interchangeable / Superseded Part Codes: FA06072, FA06151, FA06131, FA06092, FA06090, FA06091, FA06000, FA06070, FA06050, IA522V-9, IA522V-13, IA522V-15
• Technology: Advanced MicroPiezo TFP with Ink-Repelling Coating
• Number of Channels: 10 Independent Ink Channels
• Nozzle Configuration: 360 Nozzles per Channel (3,600 Nozzles Total)
• Droplet Volume: 1.5 to 3.5 picoliters (Multi-drop Size Technology)
• Ink Compatibility: Mild Solvent / Eco-Solvent Inks
• Condition: 100% Genuine Original, Brand New, Factory Sealed

Technical Specifications

Technical Precision & Operational Advisory

• Eco-Solvent System Compatibility: Built for Eco-Solvent / Mild Solvent inks. Do not run water-based (aqueous), DTF, UV, or harsh industrial solvent inks through this printhead, as incompatible chemistry will cause chemical degradation of internal manifold seals and immediate nozzle failure.
• Flat Flexible Cable (FFC) Inspection: Carefully inspect flat ribbon head cables before installation. Any bent contact pins, physical creases, or ink/liquid contamination on ribbon ends will cause a direct electrical short-circuit, damaging both the new printhead and the printer main board ICs upon powering on.
• Electrostatic Discharge (ESD) Safety: MicroPiezo TFP actuators are highly sensitive to static electricity. Technicians must wear anti-static grounding wrist straps during installation and ensure the printer's main power switch is turned off and unplugged from the wall outlet.
• Capping Station & Wiper Maintenance: Always replace or thoroughly service the wiper blade, anti-drying cap top assembly, and flushing pad when installing a new printhead to maintain proper vacuum seals and prevent premature ink drying on the faceplate.

Compatible Printers or Equipment

• Epson SureColor S-Series (First Generation): SureColor SC-S30600, SC-S30610, S30670, S30680, SC-S50600 (4C/5C), SC-50610 (4C/5C), S50670, SC-S50680, SC-S70600 (8C/10C), SC-70610 (8C), S70610S, S70670, SC-70680
• Epson SureColor S-Series (Second Generation): SureColor SC-S40600, SC-S40610, SC-S60600, SC-S60610, SC-S80600, SC-S80610

Packaging and Warranty

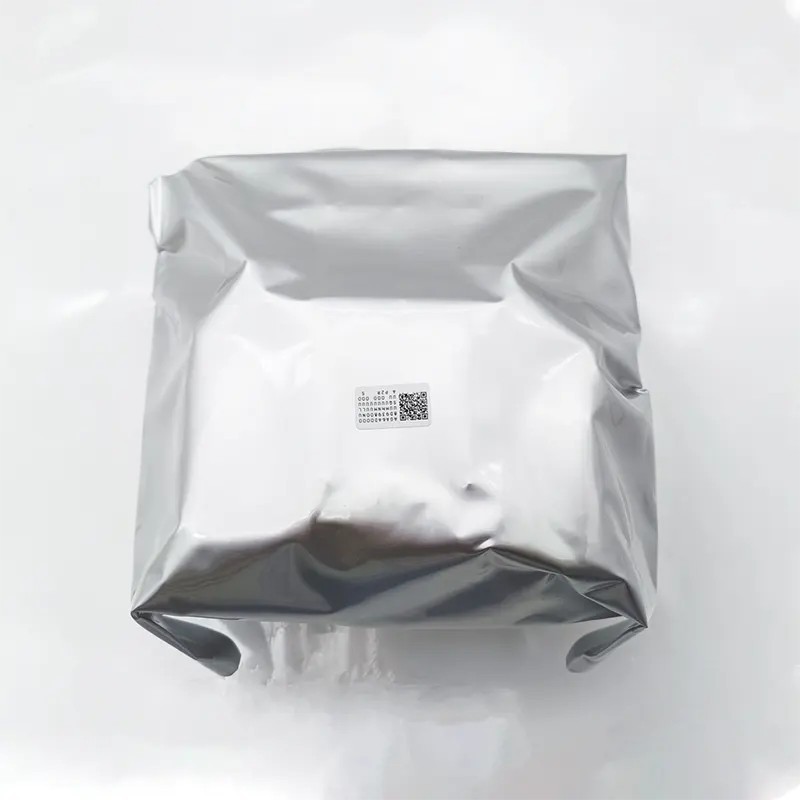

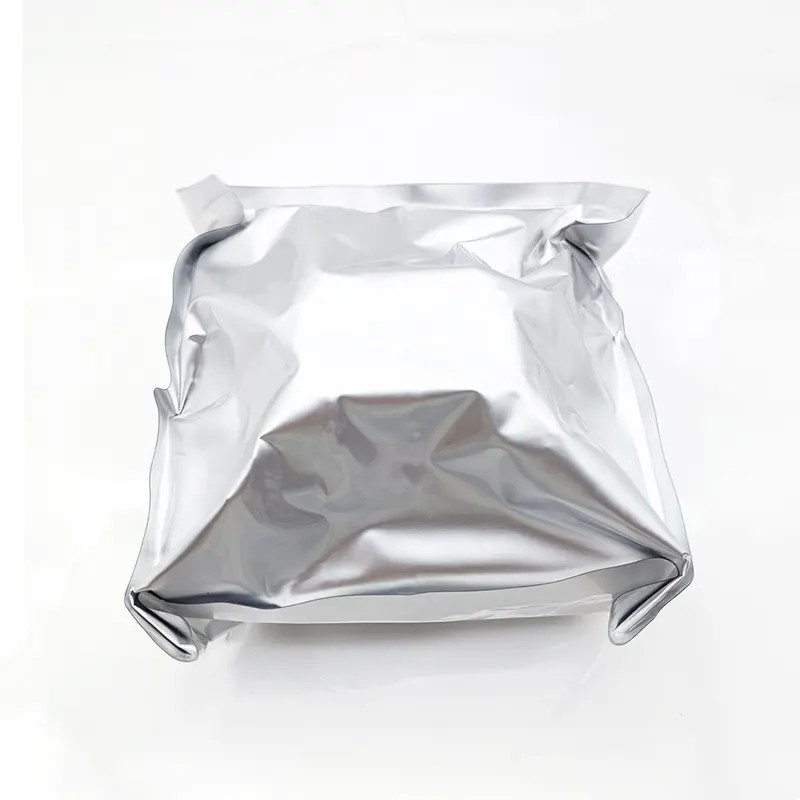

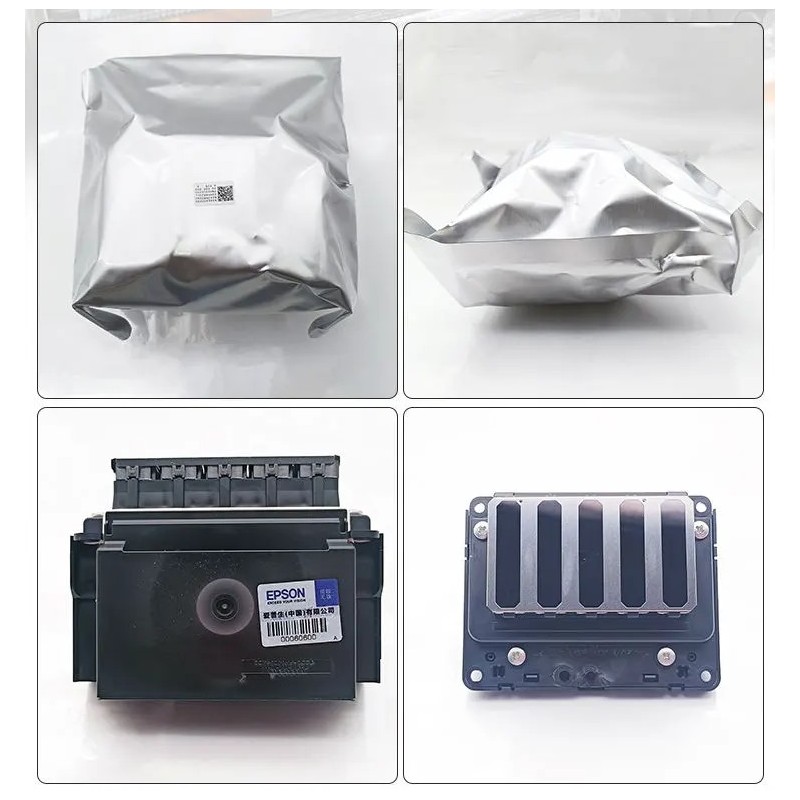

The product will be carefully packed in its original factory protective packaging to ensure safe delivery. Covered by a 1-year warranty against manufacturing defects and a 30-day store guarantee.
