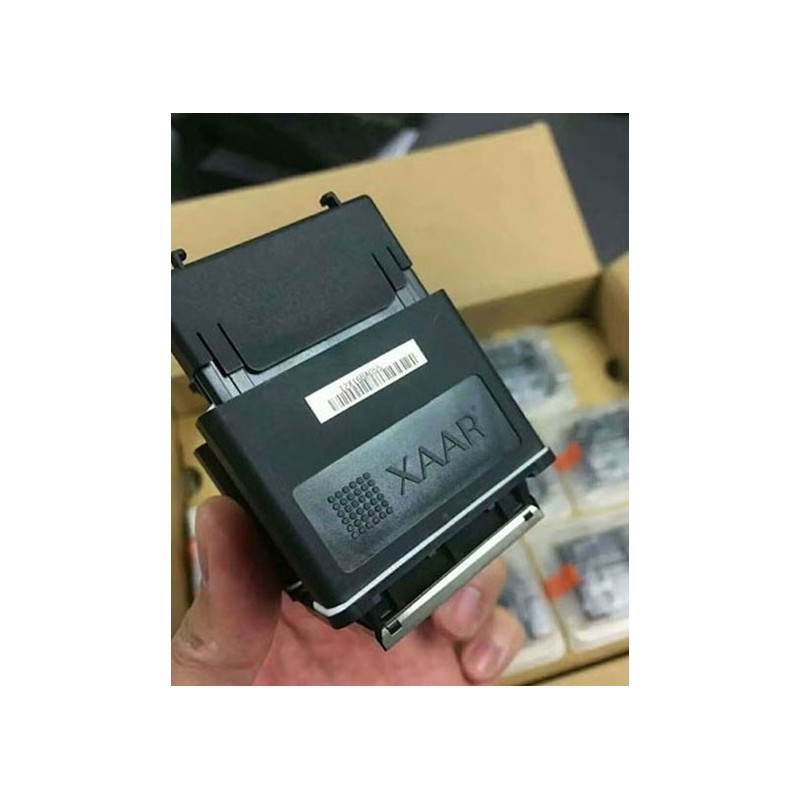

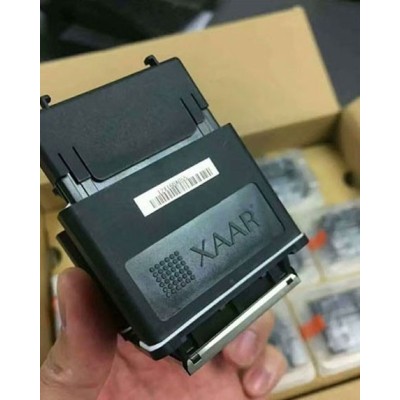

Xaar 1201 Printhead
- Write a review
$150.00
The Xaar 1201 Printhead is a versatile and cost-effective 1280-nozzle piezo printhead designed for entry-level wide-format, UV flatbed, and textile printers running eco-solvent, aqueous, or UV inks.
The Xaar 1201 Printhead is a compact, high-performance piezoelectric drop-on-demand printhead designed for entry-level wide-format digital printers. Equipped with 1280 nozzles arranged across 4 separate rows, it offers the flexibility to print with 1, 2, or 4 color channels from a single head.
Engineered with variable drop size technology ranging from 2 to 12 picoliters, the Xaar 1201 delivers smooth color gradients, sharp text, and high-contrast photographic output at resolutions up to 1440 dpi. Its broad ink system compatibility—supporting eco-solvent, aqueous pigment/sublimation, and UV-curable inks—makes it an adaptable choice for signage, indoor/outdoor graphics, and textile printing applications.
Key Features & Operational Advantages
- Multi-Color Channel Configuration: Operates with 1, 2, or 4 color channels, allowing multiple colors to be driven by a single printhead.
- Variable Drop Size (2–12 pl): Delivers precise droplet control for fine details, high-density solid fills, and smooth tonal transitions.
- Multi-Ink Versatility: Fully compatible with eco-solvent, aqueous, and UV ink formulations.
- High Resolution Output: Achieves native 600 dpi resolution and up to 1440 dpi in variable dot mode for sharp text and vibrant graphics.
- Cost-Effective Design: A budget-friendly solution for commercial printing businesses seeking industrial output quality.
Technical Specifications
| Printhead Model | Xaar 1201 |
| Native Resolution | 600 dpi (Up to 1440 dpi with variable dot) |
| Number of Nozzles | 1280 Nozzles (4 x 320 rows) |
| Drop Size | 2 to 12 picoliters (Variable) |
| Ink Compatibility | Eco-solvent, Aqueous, UV-curable |
| Applications | Signage, Commercial Graphics, Textile Printing |
Operational Advisory & Installation Guidelines
- Precision Component Handling: Printheads are delicate electronic devices. Always handle the printhead with extreme care and avoid touching the nozzle plate or contact pins.
- Power Isolation: Ensure the printing machine is completely powered off and unplugged from main power before disconnecting or installing printhead cables.
- Electrostatic Discharge (ESD) Safety: Use anti-static wrist grounding straps during installation to prevent static electricity from damaging the internal piezo actuators.
- Final Sale Notice: Due to the sensitive electrical and chemical nature of printhead installations, installed printheads cannot be returned or refunded once opened or mounted.
Compatible Printers or Equipment
| Printer Category | Application / Equipment Type |
|---|---|
| Eco-Solvent Printers | Wide-format entry-level eco-solvent printers |
| UV Flatbed Printers | Entry-level UV flatbed & roll-to-roll printers |
| Textile Inkjet Printers | Digital textile & dye-sublimation printers using aqueous inks |
(Please check with your equipment manufacturer to confirm motherboard and driver board compatibility before ordering.)
Packaging and Delivery
- Packaging: Carefully packed in manufacturer's sealed packaging to prevent damage during shipping.
- Worldwide Delivery: Fast international dispatch available via DHL, FedEx, UPS.
Warranty and Customer Protection
This product is covered by a 1-year warranty against manufacturing defects, subject to applicable warranty terms and conditions.
We also provide a 30-day store guarantee for customer protection. If your item arrives damaged, defective, or does not function properly upon receipt, please contact us within 30 days of delivery. Depending on the situation, we will provide a replacement or a 100% refund of the product payment.
