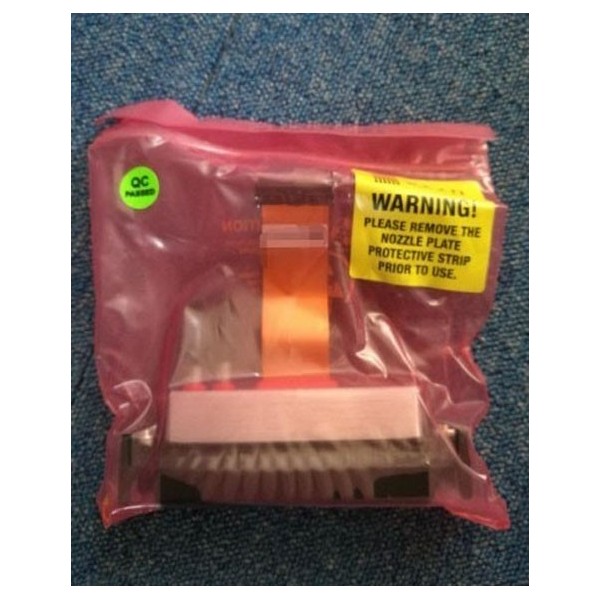

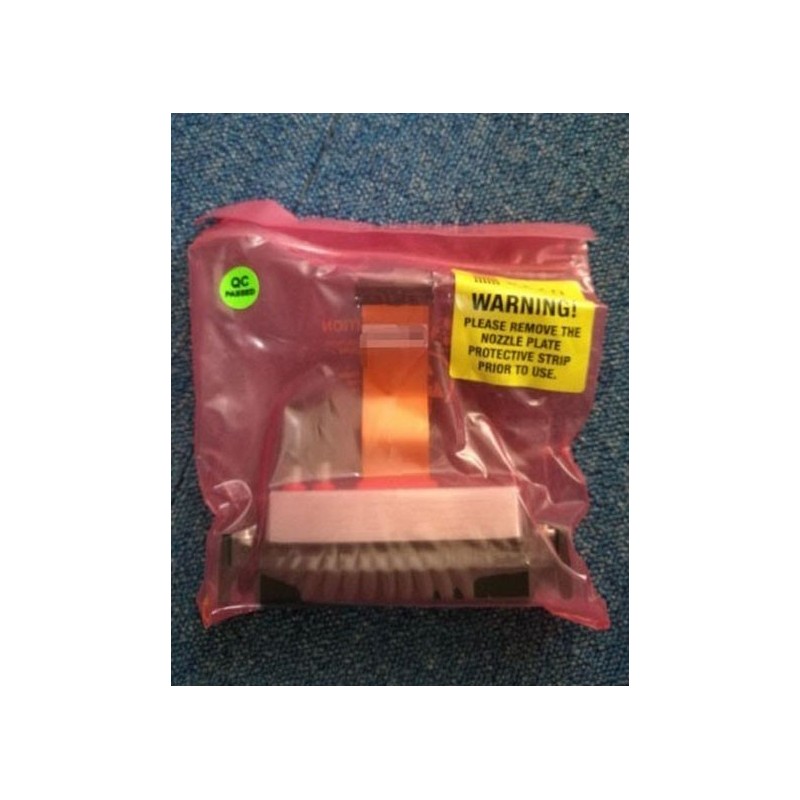

Brand New Original Xaar 1001 GS12 Print Head
- Write a review
$835.00
The Xaar 1001 GS12 Print Head is a high-performance piezoelectric drop-on-demand inkjet printhead featuring TF Technology and Hybrid Side Shooter architecture for single-pass printing applications.
Product Overview
The Xaar 1001 GS12 Print Head is designed for high-reliability single-pass printing applications including labels, packaging, ceramics, advanced manufacturing, and product decoration. Utilizing Xaar's TF Technology (Through-Flow Technology) and Hybrid Side Shooter architecture, ink is continuously recirculated past the back of the nozzle during drop ejection, ensuring continuous operation even in harsh industrial printing environments.
Featuring 1000 active nozzles across 2 rows and an effective resolution exceeding 1000 dpi through 8 grey levels, the Xaar 1001 GS12 provides photographic image quality and crisp text while eliminating the need for light colors, reducing overall operating costs.
Key Features & Operational Advantages
- TF Technology & Hybrid Side Shooter: Continuous ink recirculation past the nozzle chamber minimizes air bubbles and sediment buildup for maximum operational reliability.
- Greyscale Printing Capability: Supports 8 grey levels with drop volumes from 12 to 84 pl for high contrast, smooth tonal transitions, and sharp details.
- High Native Resolution: Native 360 npi layout delivering over 1000 dpi effective print resolution.
- Easy Integration: Fully compatible with XUSB drive electronics and Hydra recirculating ink supply systems for fast system setup.
- Cost-Efficient Operation: High ink density and grayscale capability eliminate the requirement for light ink channels (e.g., Light Cyan, Light Magenta).
Technical Specifications
| Model | Xaar 1001 GS12 |
| Active Nozzles | 1000 (2 rows) |
| Print Swathe Width | 70.5 mm |
| Nozzle Pitch | 70.5 µm |
| Nozzle Density | 360 npi |
| Drop Volume | 12 to 84 pl (8 grey levels) |
| Drop Velocity | 6 m/s |
| Typical Firing Frequency | 6 to 12 kHz |
| Supported Ink Type | Oil |
| Dimensions (W x D x H) | 125 x 31 x 61 mm |
| Weight (Dry) | 122 g |
Operational Advisory & Installation Guidelines
- Handle the component carefully to avoid physical damage.
- Follow proper ESD protection procedures during installation.
- Do not touch sensitive electrical contacts or nozzle surfaces unnecessarily.
- Handle FFC cables and connectors carefully.
- Ensure the printer is powered off before installation.
- Installation should be performed by qualified technicians when required.
- Sensitive electronic components must not be damaged, altered, or improperly installed if a return is requested.
Compatible Printers or Equipment
| Printer Type | Application / Environment |
|---|---|
| Solvent & Industrial Inkjet Printers | Single-pass labeling, packaging, ceramics, and product decoration |
(Please verify system electronics, drive boards, and ink supply compatibility with your equipment manufacturer prior to installation.)
Packaging and Delivery

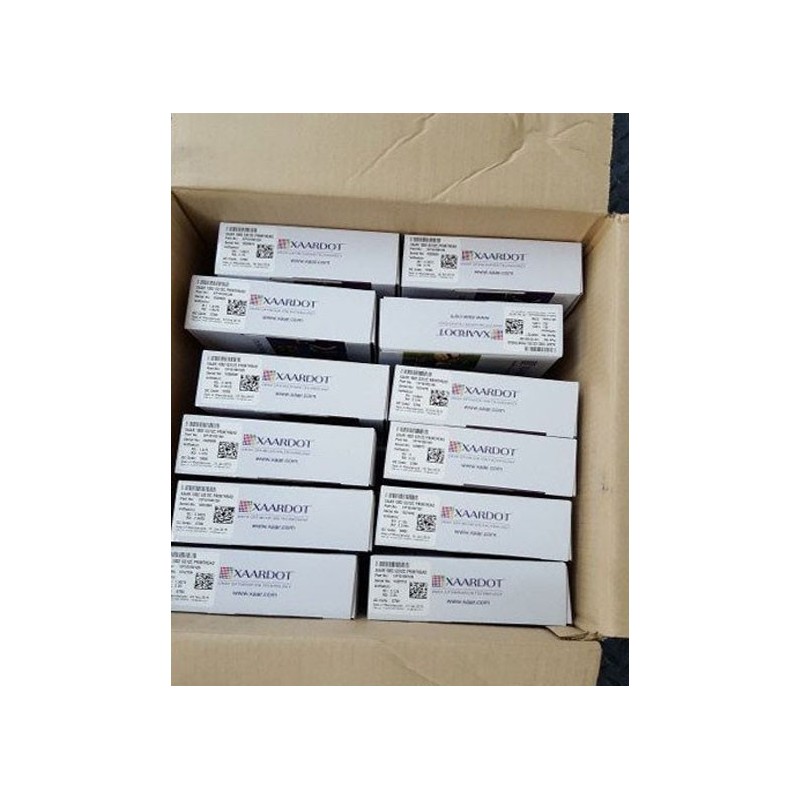

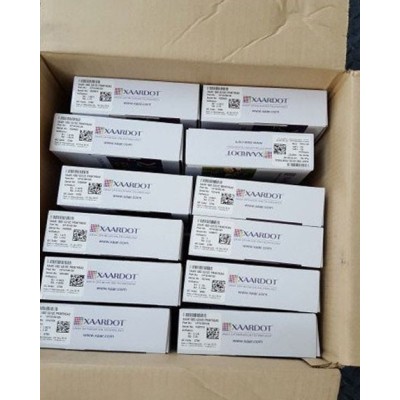

- Packaging: The product will be carefully packed using suitable protective packaging to help reduce the risk of damage during international transportation.
- Shipping: Shipping arrangements and courier options may depend on the destination and order requirements.
Warranty and Customer Protection
- 1-Year Warranty: Covered according to the applicable warranty terms provided for the product.
- 30-Day Return Guarantee: Returns may be accepted within 30 days according to the applicable return policy.
- Please inspect the product upon delivery and report any shipping damage or product issues promptly.
- Returns for sensitive electronic components may be subject to inspection and must comply with the seller's return conditions.
