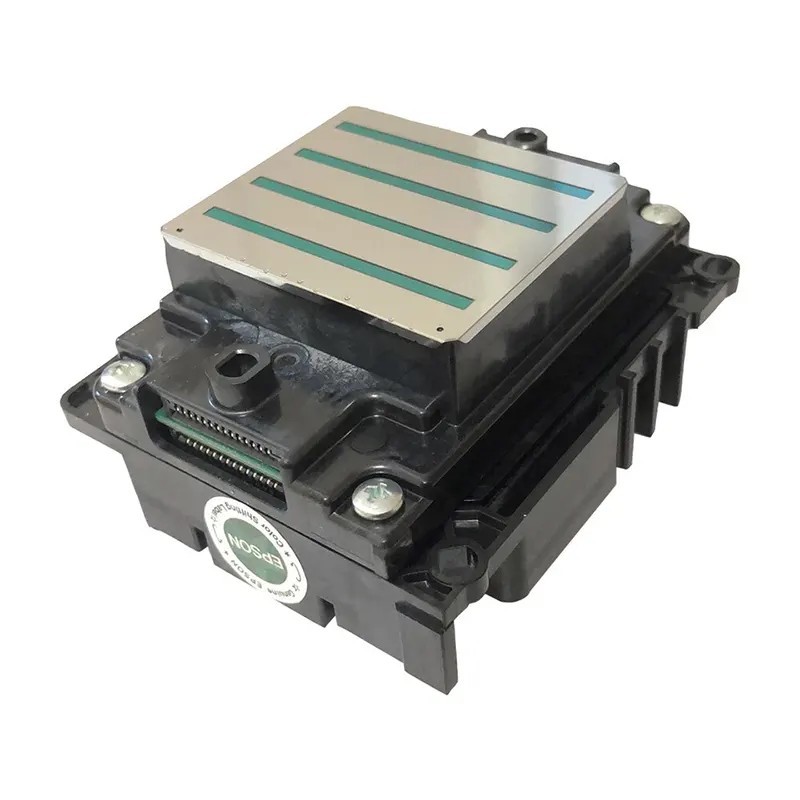

Epson I3200-U1 UV Printhead PrecisionCore Industrial Replacement Head

Product Overview

The Epson I3200-U1 UV Printhead is a high-performance 1.33-inch wide PrecisionCore MicroTFP industrial printhead engineered by Epson to deliver maximum productivity, exceptional longevity, and 600 dpi high-density resolution. Featuring 8 distinct nozzle columns with 400 nozzles per column (3,200 active nozzles total), this printhead supports up to 4 independent ink color channels with multi-drop variable grayscale drop control.

Designed specifically to handle the chemical properties and viscosity range (5–7 mPa·s) of UV-curable inks, the I3200-U1 operates at high jetting frequencies up to 43.2 kHz. It serves as a direct factory replacement part to resolve severe nozzle blockages, channel short-circuits, or deflection issues on industrial UV flatbed, hybrid, and cylindrical label printing systems.

Part Information

• Brand: Epson
• Product Series: PrecisionCore I3200 Series
• Model Code: I3200-U1
• Product Type: Industrial Inkjet Printhead
• Ink Type Compatibility: UV-Curable Inks
• Technology: PrecisionCore MEMS MicroTFP
• Nozzle Configuration: 8 Columns x 400 Nozzles (3,200 Active Nozzles Total)
• Native Nozzle Density: 300 npi (1 column) / 600 npi (2 columns)
• Effective Print Width: 33.8 mm (1.33 inches)
• Dimensions & Weight: 69.1 x 59.4 x 35.6 mm | 82 g
• Condition: 100% Genuine Original, Brand New

Technical Specifications

Technical Precision & Operational Advisory

• UV Ink Formulation Specifics: The I3200-U1 features specialized internal manifolds built to resist UV monomers and photoinitiators. Do not use water-based (A1) or eco-solvent (E1) heads for UV printing, as unapproved ink formulations will degrade internal seals.
• Inspect Flat Ribbon Cables (FFC): Carefully examine all flat flexible cables for bent pins, debris, or uncured UV ink before connection. Shorted cable pins will burn out both the printhead driver board and main controller board instantly upon power-up.
• Electrostatic Discharge (ESD) Safety: PrecisionCore MEMS actuators are electrostatic-sensitive. Technicians must wear grounded wrist straps during installation and fully power down the printer prior to cable connection.
• Capping & Damper Maintenance: Replace ink dampers, wiper blades, and UV capping tops during printhead installation to ensure proper vacuum seal and prevent stray UV light exposure from curing ink on the head faceplate.

Compatible Printers or Equipment

• UV Flatbed & Hybrid: Industrial UV flatbed, roll-to-roll, and hybrid signage printers utilizing Epson I3200-U1 printheads
• UV Label & Packaging: Wide-format UV label presses, cylindrical UV bottle printers, and packaging print systems
• OEM Board Systems: Compatible with Hoson, Sunyung, BYHX, and Hansen driver board systems configured for Epson I3200 UV heads

Important Compatibility Notice

Please verify your existing motherboard configuration, driver board system, and ink chemistry requirements prior to ordering. If you require assistance confirming compatibility, please contact us with your machine specs.

Packaging and Shipping

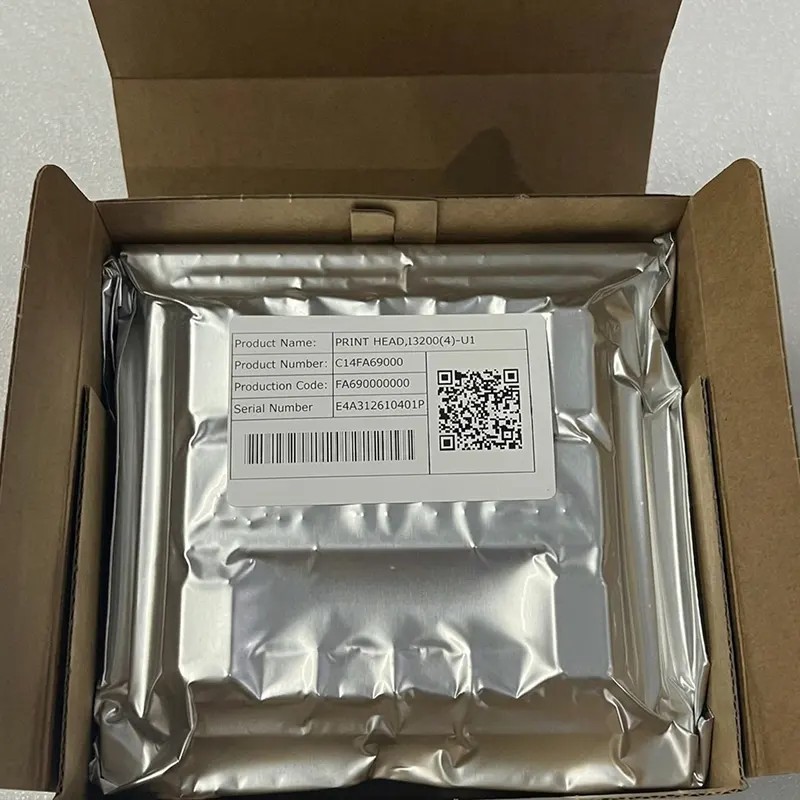

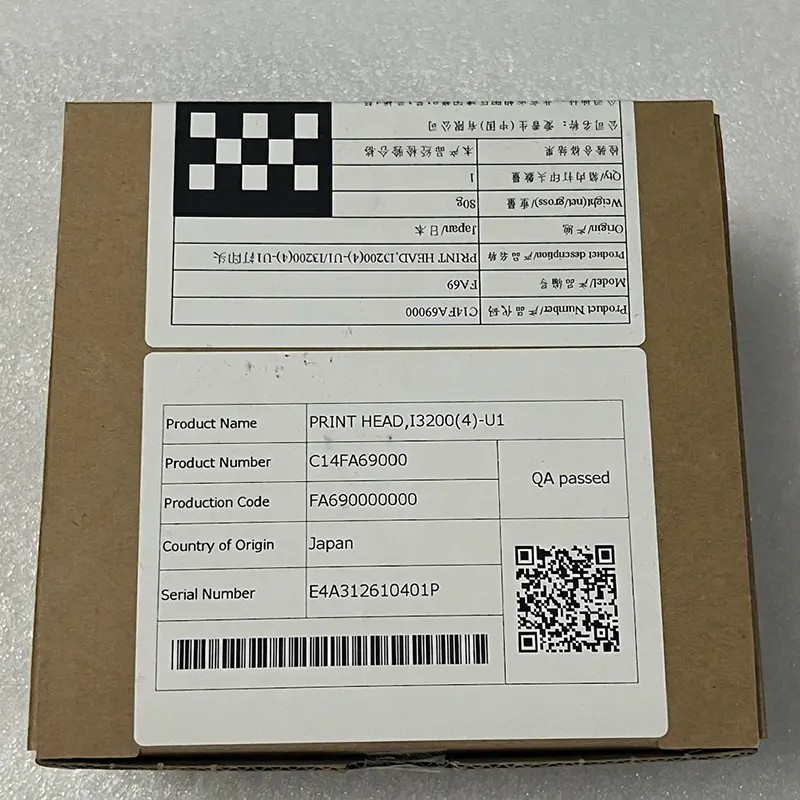

The product will be carefully packed in anti-static protective factory packaging to ensure safe delivery during international transit.

Genuine Product Notice

This product is supplied as a 100% genuine original, brand-new replacement part.

Terms & Warranty Advisory

• Pre-Installation Guarantee: We guarantee that the item received is 100% genuine, brand-new, and authentic in original factory condition.
• Chemical Ink Disclaimer: Due to the chemical nature of industrial UV inks, once the printhead has been installed on the machine or exposed to ink, it cannot be returned, exchanged, or refunded. All sales become final upon installation.
• Return Policy Before Use: Unused and uninstalled items in original packaging may be returned or exchanged under our store policy prior to installation. Please contact us before returning any item.
