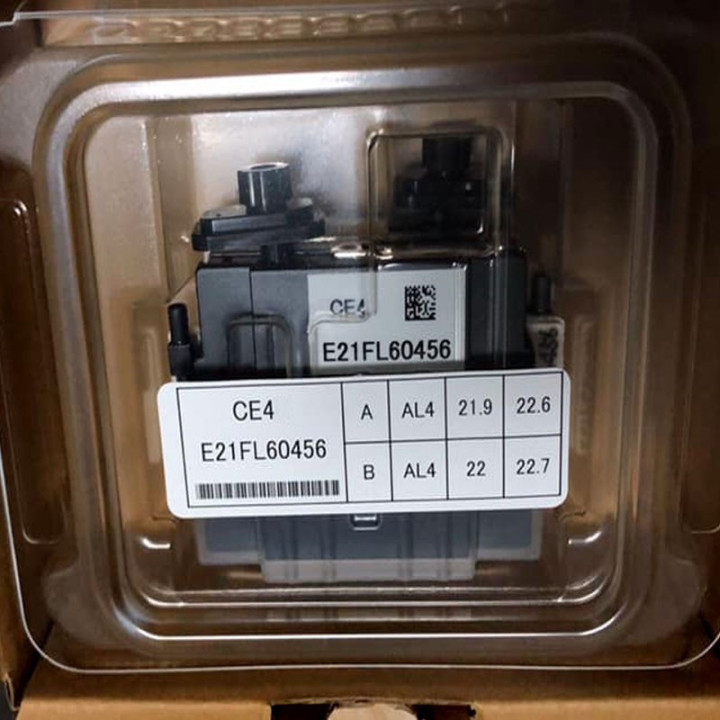

Original Mimaki CE4 Printhead Assy M008386

Original Mimaki CE4 Printhead Assy M008386

Name: Original Mimaki CE4 Printhead Assy M008386
Brand: Mimaki
SKU: M008386
Price: 943.11 USD
Availability: InStock

Mimaki

998,00 $ (Save 5,5%)

943,11 $

Tax included

This Printhead Assy is suitable for the Mimaki UJV-160 / JFX / UJF Printers. This is the original Mimaki part (number M008386). It includes the metallic support for fixation. The same printhead without the metallic support is sold as part number KX-CE308644CS-CE4. The cables are 40.9cm long, 2.1cm w

GENUINE OEM REPLACEMENT • PRECISION FLUID HARDWARE

Original Mimaki CE4 Printhead Assy M008386 – OEM M008386

Part No: M008386 | Engine: Piezoelectric Micro-drop / Mimaki | Platform: Wide-Format Inkjet Series

Product Description

The Original Mimaki CE4 Printhead Assy M008386 is a genuine OEM piezoelectric inkjet module engineered for high-duty industrial production. It delivers consistent micro-drop placement, excellent nozzle uniformity and long service life under continuous wide-format operation.

The core uses a multi-row piezoelectric actuator array with a precision nozzle plate and passivated fluid manifold. Drive electronics are matched to original Mimaki waveform tables. Voltage and pulse parameters must remain within OEM limits to protect actuator life and maintain droplet accuracy.

Mechanical mounting geometry and electrical interface are identical to the factory-fitted unit, ensuring direct drop-in replacement. Each part ships 100% factory-sealed in anti-static packaging. Authenticity is confirmed by OEM batch marking.

Verification Notice: Confirm the exact OEM Part Number M008386 against the printer service documentation and the physical marking on the installed unit before ordering or installation.

ENGINEERING REFERENCE

Identification Notes & Core Distinction

Reference	Description
Current OEM P/N	M008386 – Current production revision.
Core Engine	Piezoelectric Micro-drop / Mimaki – Factory original subsystem.

Notice: Components from different generations or alternate interfaces are not interchangeable. Always use the exact matched assembly.

Product Details

A. Part Information Matrix

Product Name	Original Mimaki CE4 Printhead Assy M008386 (Genuine OEM)
Manufacturer	Mimaki
OEM Part Number	M008386
Condition	100% Factory Sealed – New Original Packaging
Industrial Application	Wide-Format Inkjet Series

B. Technical Specifications

Technology	Piezoelectric drop-on-demand
Mounting Interface	OEM mechanical registration – direct drop-in
Electrical Interface	OEM FFC / connector set
Protective Features	Anti-static packaging, factory sealed

FIELD ADVISORY

Technical Precision & Installation Warning

Installation must be performed only by trained industrial service technicians following official Mimaki procedures. Incorrect handling voids all warranties and risks permanent damage to the machine.

ESD Protection: Use grounded wrist strap and ESD-safe surface at all times. Components are highly sensitive to electrostatic discharge.
Power Isolation: Full power-down and lock-out required. Never hot-swap active components.
Cable / FFC Inspection: Inspect all flexible cables and connectors for damage, oxidation or bent contacts before mating.
Part Number Check: Verify the part number on the unit against packaging and printer configuration before power-up.

Compatible Models & Subsystems

Supported Mimaki Platforms

Compatible Mimaki Industrial Series
Systems specifying OEM P/N: M008386

Physical Verification Required: Always verify the exact part number on the existing hardware and consult the official service matrix before ordering. Non-matching revisions are not compatible.

Terms, Warranty & Customer Protection

1. Pre-Installation Guarantee: Every unit is supplied 100% factory-sealed in original OEM packaging with intact protection and anti-static barriers. Part number and batch markings are verified prior to dispatch.

2. Store Warranty Policy: 30 working days limited warranty from delivery date covering manufacturing defects only. Claims require unboxing video and technical installation documentation.

3. Final Sale Conditions: Once the factory seal is broken, nozzle tape removed, or the unit is exposed to fluid or installed, the product is final sale and non-returnable.
