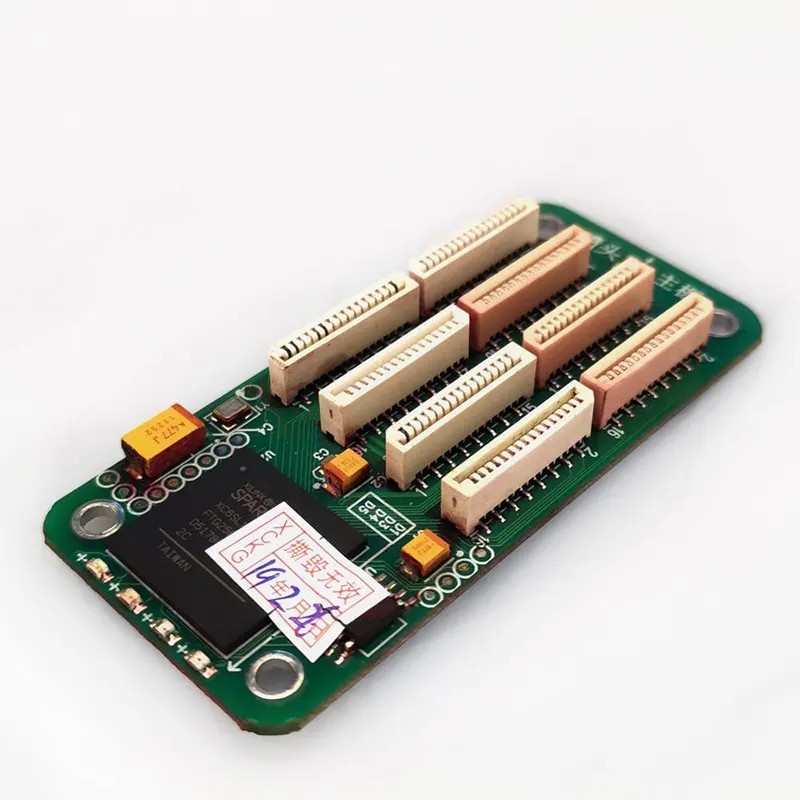

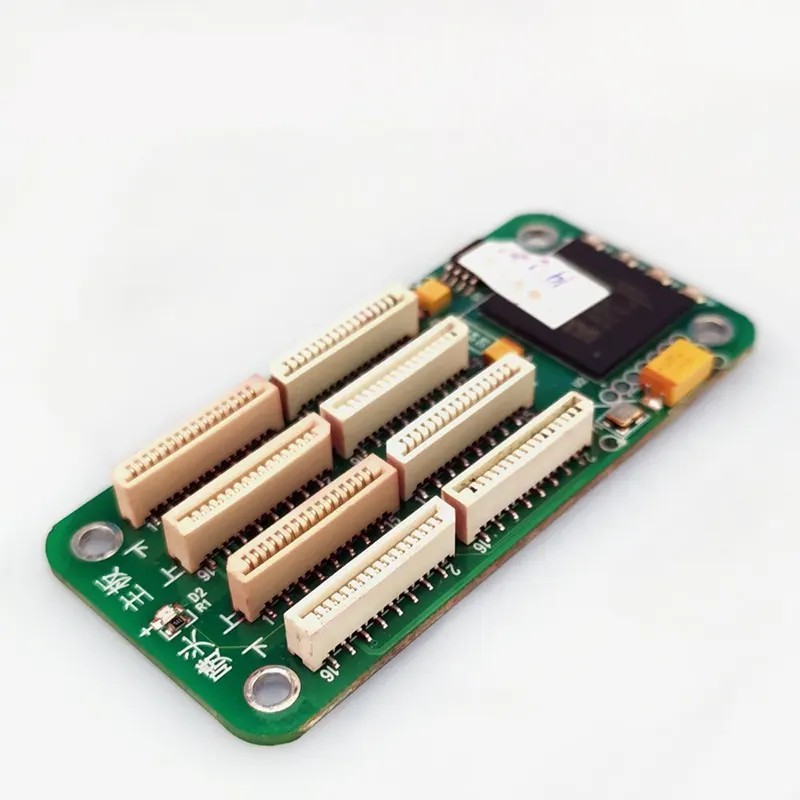

Epson 5113 1st Locked Decoder Card (First Locked Board Adapter for Epson 5113 Printhead)

Product Overview

The Epson 5113 1st Locked Decoder Card is an essential electronic interface board engineered specifically to decode signal encryptions on Epson 5113 First Locked printheads. When adapting Epson 5113 printheads to converted wide-format digital textile, dye-sublimation, or direct-to-garment (DTG) printing machinery, this decoder card translates digital signal data into precise firing instructions for high-definition print output.

By accurately processing signal streams and data files across various print file formats, this decoder card restores image fidelity, optimizes nozzle firing stability, and ensures high printing resolution without signal loss or board error conflicts.

Part Information

• Product Name: Epson 5113 1st Locked Decoder Card
• Product Type: Printhead Signal Decoder Card / Board Adapter
• Encryption Lock Level: 1st Locked
• Compatibility: Epson 5113 First Locked Printheads & Converted Inkjet Printers
• Condition: Original and Brand New
• Packaging: Carton Box with Protective Sponge Padding
• Minimum Order Quantity (MOQ): 1 Piece

Key Features & Operational Advantages

• Signal Translation: Converts complex digital signals into clear firing pulses for Epson 5113 1st locked printheads.
• High Image Fidelity: Maintains exact color mapping and sharpness, meeting rigorous high-definition digital printing standards.
• Rapid Data Processing: Fast processing of high-volume print spooling files without data transmission lag or buffering pauses.
• Enhanced Stability: Reduces signal interference and communication errors between mainboard controllers and the printhead carriage.

Technical Specifications

Operational Advisory & Installation Guidelines

• Power Isolation: Always fully switch off and disconnect the main power supply from the printing machine before installing or replacing decoder cards or ribbon cables.
• Cable Pin Alignment: Carefully inspect the flexible flat ribbon cables (FFC) prior to connection. Ensure terminal contacts are completely clean, dry, and aligned straight into the decoder card sockets.
• Firmware & Lock Generation Verification: Verify that your installed printhead is specifically a 1st Locked version before pairing with this decoder card to ensure proper electronic handshake and prevent firmware faults.
• Static Discharge Protection: Use anti-static wrist straps or ground yourself prior to handling electronic boards to prevent electro-static discharge (ESD) from damaging delicate decoder microchips.

Compatible Printers or Equipment

Important Compatibility Notice: Please confirm the lock generation of your Epson 5113 printhead (1st Locked vs 2nd/3rd Locked / Unlocked) and mainboard controller board type prior to installation. If you require technical assistance, please contact us with your printer and printhead details.

Packaging and Shipping

The item is safely packed in a carton box with protective shock-absorbing sponge padding to guarantee safe international transport.

Warranty and Customer Protection

This product is covered by a 1-year warranty against manufacturing defects, subject to applicable warranty terms and conditions. We also provide a 30-day store guarantee for customer protection. If your item arrives damaged, defective, or does not function properly upon receipt, please contact us within 30 days of delivery.
