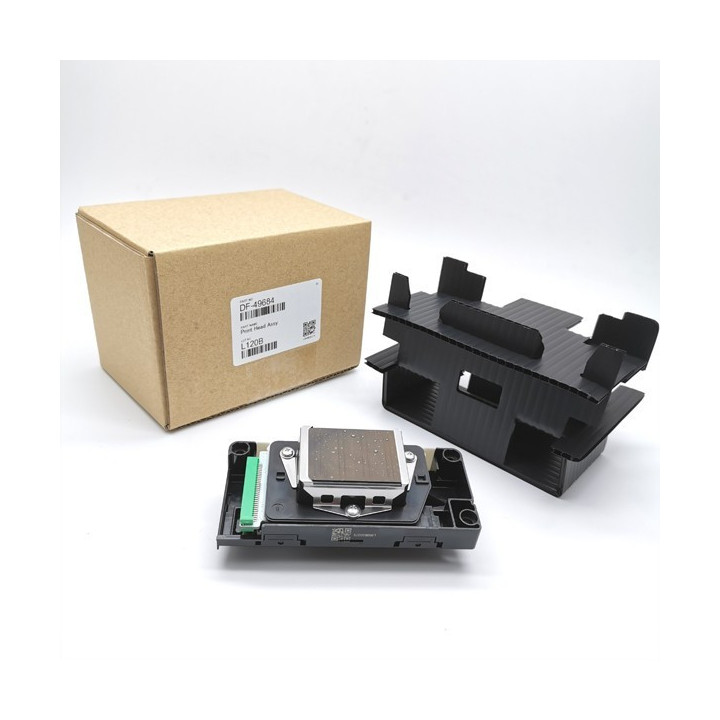

Genuine Mutoh VJ-1604 Printhead Assy Mutoh DF-49684

Name: Genuine Mutoh VJ-1604 Printhead Assy Mutoh DF-49684
Brand: Mutoh
SKU: Mutoh VJ-1604 Printhead
Price: 486.68 USD
Availability: InStock

Mutoh

$515.00 (Save 5.5%)

$486.68

Tax included

This VJ-1604 printhead is suitable for Mutoh ValueJet printer series printers. This original Mutoh printhead is solvent based and has a 24 digit head ID. Please refer to DF-49029 for the 40 digit head ID water based Mutoh printhead.

GENUINE OEM REPLACEMENT • PRECISION FLUID HARDWARE

Genuine Mutoh VJ-1604 Printhead Assy Mutoh DF-49684 – OEM Mutoh VJ-1604 Printhead

Part No: Mutoh VJ-1604 Printhead | Engine: Piezoelectric Micro-drop / Mutoh | Platform: Wide-Format Inkjet Series

Product Description

The Genuine Mutoh VJ-1604 Printhead Assy Mutoh DF-49684 is a genuine OEM piezoelectric inkjet module engineered for high-duty industrial production. It delivers consistent micro-drop placement, excellent nozzle uniformity and long service life under continuous wide-format operation.

The core uses a multi-row piezoelectric actuator array with a precision nozzle plate and passivated fluid manifold. Drive electronics are matched to original Mutoh waveform tables. Voltage and pulse parameters must remain within OEM limits to protect actuator life and maintain droplet accuracy.

Mechanical mounting geometry and electrical interface are identical to the factory-fitted unit, ensuring direct drop-in replacement. Each part ships 100% factory-sealed in anti-static packaging. Authenticity is confirmed by OEM batch marking.

Verification Notice: Confirm the exact OEM Part Number Mutoh VJ-1604 Printhead against the printer service documentation and the physical marking on the installed unit before ordering or installation.

ENGINEERING REFERENCE

Identification Notes & Core Distinction

Reference	Description
Current OEM P/N	Mutoh VJ-1604 Printhead – Current production revision.
Core Engine	Piezoelectric Micro-drop / Mutoh – Factory original subsystem.

Notice: Components from different generations or alternate interfaces are not interchangeable. Always use the exact matched assembly.

Product Details

A. Part Information Matrix

Product Name	Genuine Mutoh VJ-1604 Printhead Assy Mutoh DF-49684 (Genuine OEM)
Manufacturer	Mutoh
OEM Part Number	Mutoh VJ-1604 Printhead
Condition	100% Factory Sealed – New Original Packaging
Industrial Application	Wide-Format Inkjet Series

B. Technical Specifications

Technology	Piezoelectric drop-on-demand
Mounting Interface	OEM mechanical registration – direct drop-in
Electrical Interface	OEM FFC / connector set
Protective Features	Anti-static packaging, factory sealed

FIELD ADVISORY

Technical Precision & Installation Warning

Installation must be performed only by trained industrial service technicians following official Mutoh procedures. Incorrect handling voids all warranties and risks permanent damage to the machine.

ESD Protection: Use grounded wrist strap and ESD-safe surface at all times. Components are highly sensitive to electrostatic discharge.
Power Isolation: Full power-down and lock-out required. Never hot-swap active components.
Cable / FFC Inspection: Inspect all flexible cables and connectors for damage, oxidation or bent contacts before mating.
Part Number Check: Verify the part number on the unit against packaging and printer configuration before power-up.

Compatible Models & Subsystems

Supported Mutoh Platforms

Compatible Mutoh Industrial Series
Systems specifying OEM P/N: Mutoh VJ-1604 Printhead

Physical Verification Required: Always verify the exact part number on the existing hardware and consult the official service matrix before ordering. Non-matching revisions are not compatible.

Terms, Warranty & Customer Protection

1. Pre-Installation Guarantee: Every unit is supplied 100% factory-sealed in original OEM packaging with intact protection and anti-static barriers. Part number and batch markings are verified prior to dispatch.

2. Store Warranty Policy: 30 working days limited warranty from delivery date covering manufacturing defects only. Claims require unboxing video and technical installation documentation.

3. Final Sale Conditions: Once the factory seal is broken, nozzle tape removed, or the unit is exposed to fluid or installed, the product is final sale and non-returnable.
